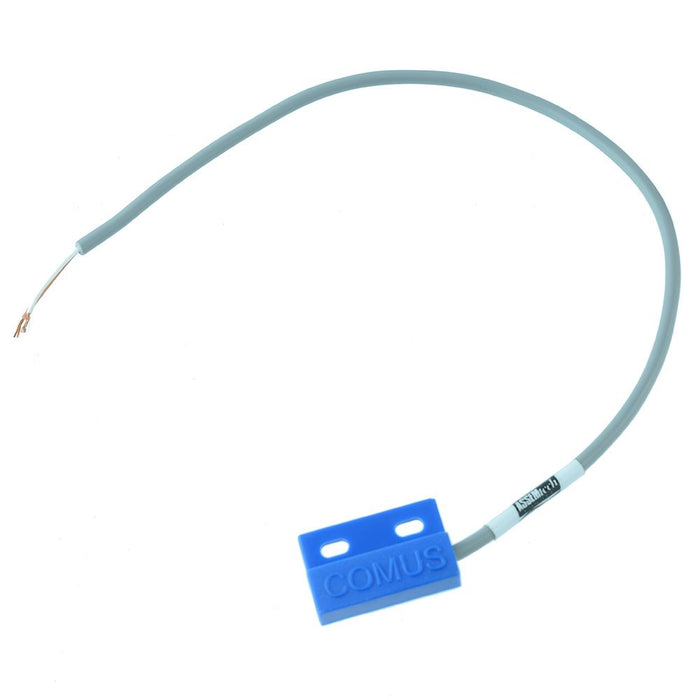

Proximity Reed Switch NC 500mA 100V - S1271 PSB175/30

The PSB 175/30 is a rectangular proximity switch featuring normally closed contacts, blue nylon 66 housing. Suitable for applications including position and limit sensing, linear actuators, security system switch and door switch.

Suggested magnet: PSM

Normally closed contacts

Maximum switching voltage: 150VAC

Maximum switching current: 0.5A

Maximum switching capacity: 5W/VA

Switching distance: 8mm Min

300mm of 2 x round 0.14mm² PVC covered Grey and Insulated Brown / White
