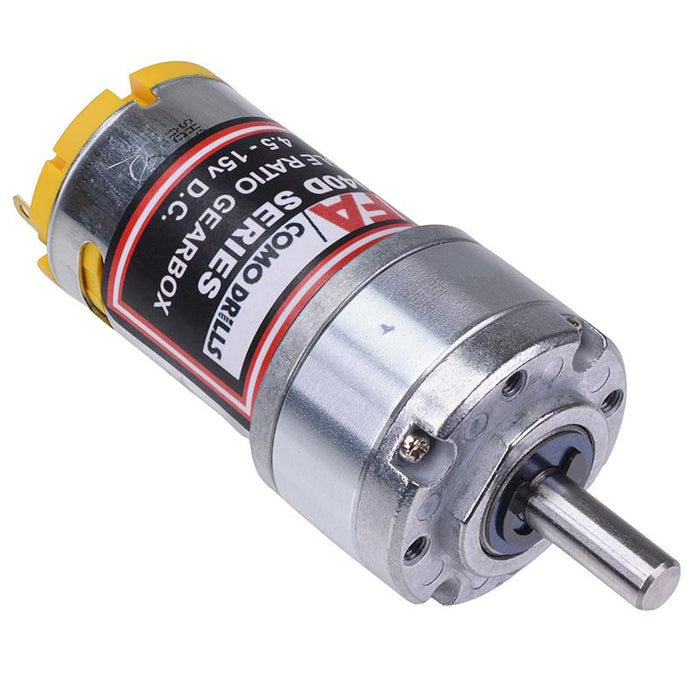

MFA 940D51 Epicyclic 5:1 Gearbox and Motor 4.5-15V
by MFA Como
SKU 485470
MPN: 940D51
Availability:
Only 1 left!
Original price
£0
Original price
£28.24
-
Original price
£28.24
Original price
Current price
£28.24(inc. VAT)
£28.24
-
£28.24
Current price
£28.24
Quantity Discounts
| Buy 25 - 99 | Get 13% off | £24.57(inc. VAT) each |
| Buy 100 - 249 | Get 21% off | £22.31(inc. VAT) each |
| Buy 250 - 499 | Get 28% off | £20.33(inc. VAT) each |
| Buy 500+ | Get 33% off | £18.92(inc. VAT) each |
The 940D51 is a 4.5-15V 5 pole DC motor with a 5:1 single ratio gearbox. The metal gearbox incorporates sleeved bearings, enabling the high torque transfer from the motor to be transmitted through the gearbox. The motors are suitable for use with robots, models and heavy industrial applications.
5:1 gear ratio Operating range: 4.5-15V Nominal voltage: 12V No load current: 0.18A No load speed: 11,646RPM Geared speed: 2329RPM 5.5mm output shaft Dimensions: 81.1 x 32mm (length x diameter) Weight 167g
Specification
| Back Order Lead Time | 5 Days |
| Diameter | 32mm |
| Length | 81.1mm |
| No Load Current | 0.18A |
| No Load Speed | 2329rpm |
| Operating Voltage | 4.5-15V |
| Rated Load Current | 0.99A |
| Rated Voltage | 12V |
| Shaft Diameter | 5.5mm |
| Shaft Length | 17.0mm |
