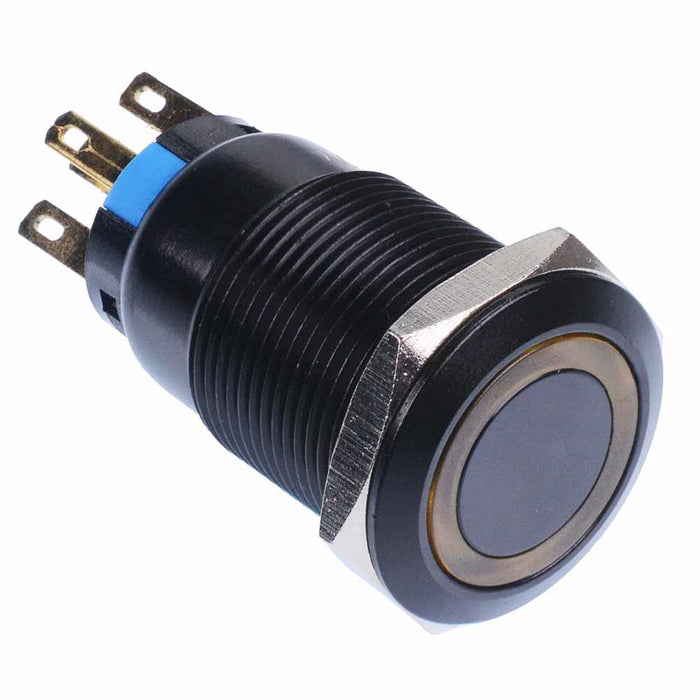

Yellow LED On-On 19mm Black Vandal Resistant Push Switch
SKU 483367
MPN: 483367
Availability:
Out of stock
Sold out
Original price
£0
Original price
£5.03
-
Original price
£5.03
Original price
Current price
£5.03(inc. VAT)
£5.03
-
£5.03
Current price
£5.03
Quantity Discounts
| Buy 10 - 24 | Get 11% off | £4.48(inc. VAT) each |
| Buy 25 - 49 | Get 16% off | £4.23(inc. VAT) each |
| Buy 50 - 99 | Get 21% off | £3.97(inc. VAT) each |
| Buy 100+ | Get 25% off | £3.77(inc. VAT) each |
Vandal resistant latching push button switch featuring a yellow LED and NO/NC contacts. The switch features IP65 protection and is suitable for 12V applications.
Latching On-On action Yellow LED 12V illumination voltage IP65 protection rating 19mm panel cut-out diameter NO/NC contacts 2.8mm terminals Rating: 5A 250VAC
Specification
| Actuation | Latching |
| Back Order Lead Time | 30 Days |
| Colour | Yellow |
| Contact Configuration | SPDT |
| Contact Rating | 5A 250VAC |
| Current Rating | 5A |
| Electrical Life | 50,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Yellow |
| Illumination Voltage | 12VDC |
| Material | Zinc Alloy |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 19mm |
| Protection Level | IP65 |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
