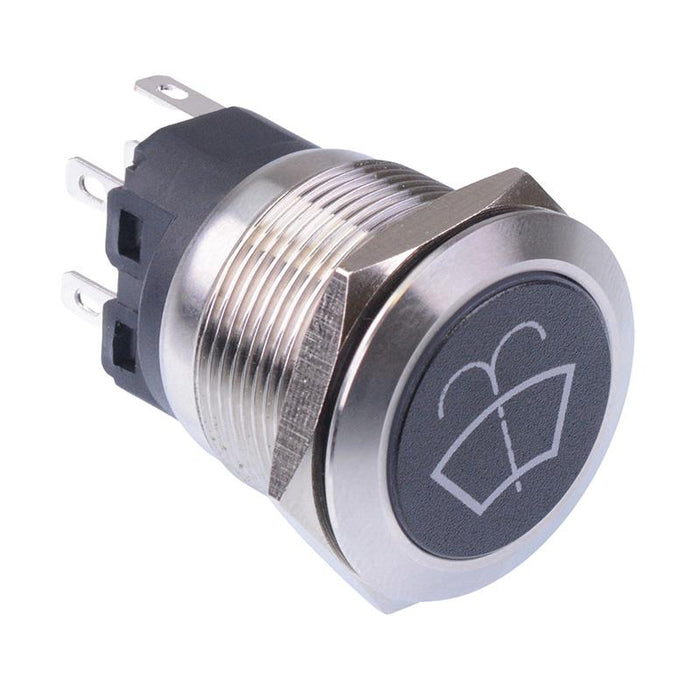

Window Washer' Blue LED Latching 22mm Vandal Push Button Switch SPDT 12V

by Langir
SKU 933411

MPN: 933411

Availability:
Out of stock
Sold out
Original price £0
Original price £11.14 - Original price £11.14
Original price
Current price £11.14(inc. VAT)
£11.14 - £11.14
Current price £11.14
 More payment options
Quantity Discounts
Buy 5 - 9Get 11% off£9.91(inc. VAT) each
Buy 10 - 24Get 17% off£9.25(inc. VAT) each
Buy 25 - 49Get 22% off£8.69(inc. VAT) each
Buy 50+Get 26% off£8.24(inc. VAT) each
Latching vandal resistant push button switch featuring a blue LED requiring 12V supply voltage and 22mm panel cut-out diameter. The switch housing is stainless steel giving it a long lifespan and resistance against rust. The switch features IP65 protection rating and is suitable for a range of 12V applications including automotive and marine.

  • Suitable for use with adhesive labels
  • Latching action
  • Blue 12V LED
  • Panel cut-out: 22mm
  • Panel thickness: 1-8mm
  • Current rating: 3A
  • Protection level: IP65
  • Contacts: NO/NC
  • Material: stainless steel
  • Terminals: 2.8 x 0.5mm
  • Dimensions: 35.5 x 25mm (height x diameter)
  • Specification
    Actuation Latching
    Back Order Lead Time 45 Days
    Contact Configuration SPDT
    Contact Rating 3A 250VAC
    Current Rating 3A
    Electrical Life 30,000 Cycles
    Illuminated Yes
    Illumination Colour Blue
    Illumination Voltage 12VDC
    Material Stainless Steel
    Mounting Style Panel
    Number of Poles 2
    Number of Positions 2
    Operating Force 3-5N
    Operating Temperature -20°C to +55°C
    Panel Cut Out 22mm
    Panel Thickness 1-8mm
    Protection Level IP65
    Switch Operation On-On
