White Round Latching 16mm Push Button Switch NO/NC 12V
SKU 486805
MPN: 486805
Availability:
Out of stock
Sold out
Original price
£3.90
-
Original price
£3.90
Original price
£3.90
Inc VAT
£3.90
-
£3.90
Current price
£3.90
Inc VAT

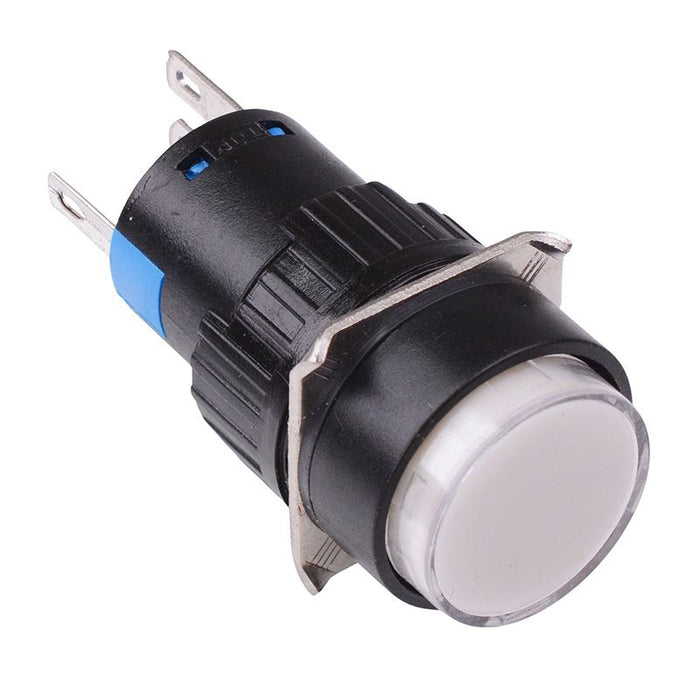

White latching push button switch featuring a round illuminated actuator and IP65 protection rating. The switch features NO and NC contacts and fits standard 16mm panel cut-outs. The switch is suitable for a wide range of applications including industrial, prototyping, automotive etc.
White 12V illumination NO/NC contacts Solder terminals Maximum voltage: 250VAC/DC Maximum current: 5A Panel cut-out: 16mm Protection level: IP65 Button size: 15.4mm Dimensions: 40.3 x 18mm
Specification
| Actuation | Latching |
| Back order lead time | 30 Days |
| Colour | White |
| Contact configuration | SPST |
| Contact material | Silver Plated |
| Contact rating | 5A 250VAC/DC |
| Current rating | 5A |
| Electrical life | 100,000 Cycles |
| Illuminated | Yes |
| Illumination colour | White |
| Illumination voltage | 12VDC |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -25°C to +55°C |
| Panel cut out | 16mm |
| Protection level | IP65 |
| Switch operation | On-Off |
| Terminal type | Solder |
| Voltage rating | 250VAC |
