TL48Y0050 APEM On-Off-(On) Momentary Subminiature Washable PCB Bracket Toggle Switch DPDT

by APEM
SKU 490161

MPN: TL48Y0050

Availability:
4897 in stock
Original price £0
Original price £3.29 - Original price £3.29
Original price
Current price £3.29(inc. VAT)
£3.29 - £3.29
Current price £3.29
 More payment options
Quantity Discounts
Buy 25 - 99Get 13% off£2.86(inc. VAT) each
Buy 100 - 249Get 21% off£2.60(inc. VAT) each
Buy 250 - 499Get 28% off£2.37(inc. VAT) each
Buy 500+Get 33% off£2.20(inc. VAT) each

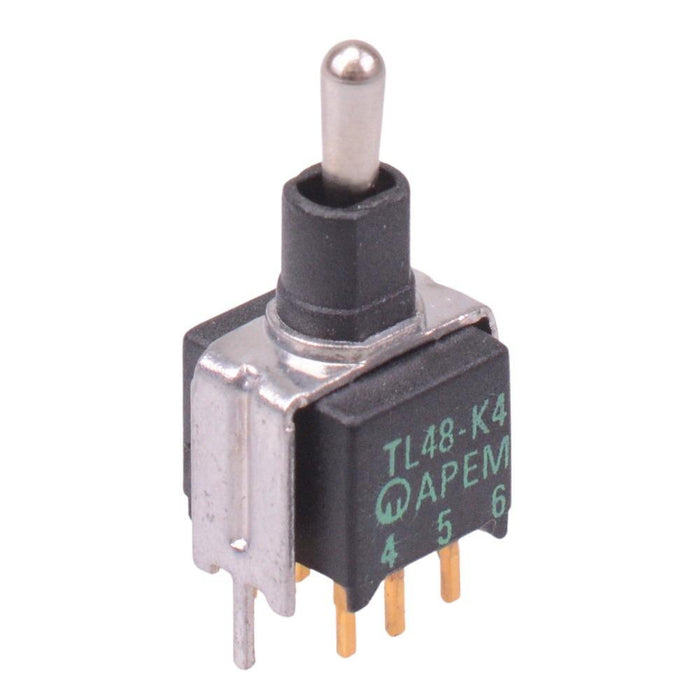

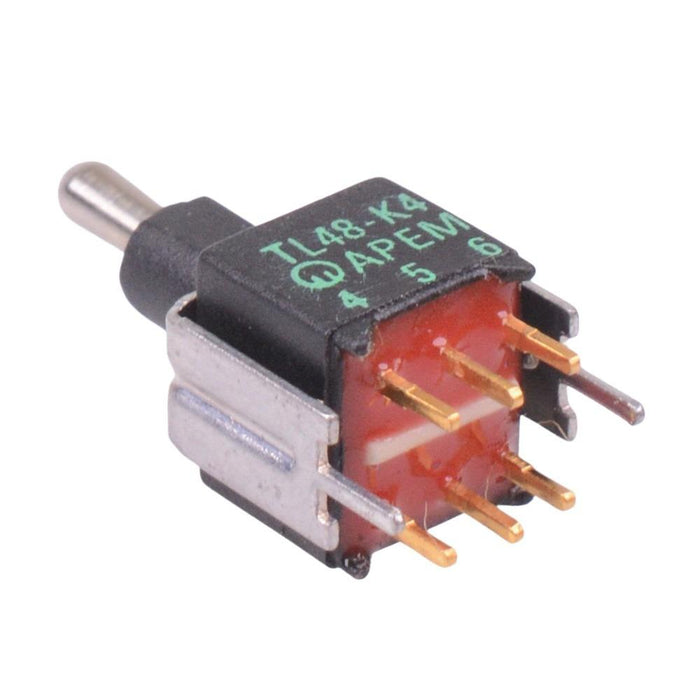

The TL48Y0050 is a sub-miniature toggle switch manufactured by APEM featuring DPDT contacts, designed for PCB mounting. The toggle switch features a single piece sealed case making them suitable for a wide range of applications including telecommunications.

  • On-Off-(On) operation
  • DPDT contacts
  • Bracket PCB mounting
  • Short nickel plated lever
  • Gold plated brass terminals
  • 2.54 x 5.08mm terminal pitch
  • Rating: 0.4A 20VAC/DC
  • Specification
    Actuation Latching / Momentary
    Contact Configuration DPDT
    Contact Material Gold Plated Brass
    Contact Rating 0.4VA 20VAC/DC
    Current Rating 0.4VA
    Electrical Life 30,000 Cycles
    Illuminated No
    MOQ 1
    Mounting Style PCB
    Number of Poles 2
    Number of Positions 3
    Operating Temperature -30°C to +85°C
    Pitch 2.54mm
    Product Series TL
    Switch Operation On-Off-(On)
    Terminal Type Solder
    Voltage Rating 20VAC/DC
