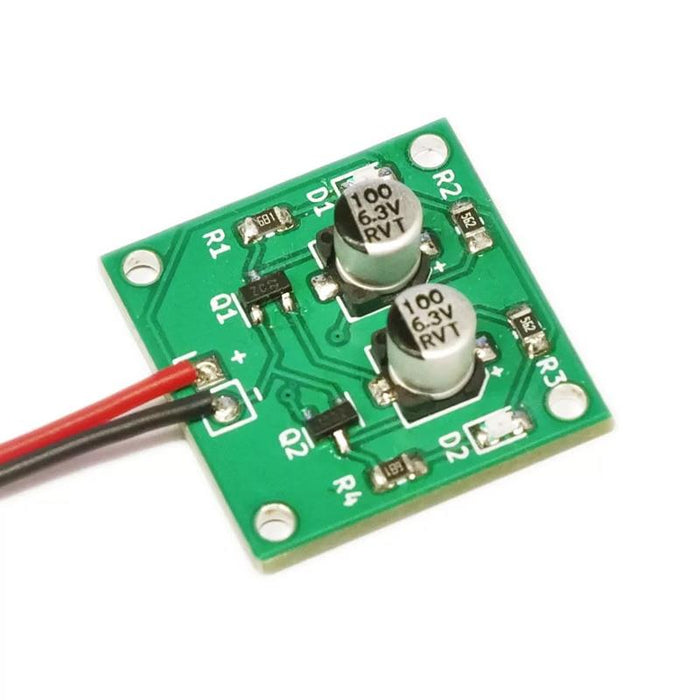

SMD Transistor LED Flasher Electronics Kit

SKU 488308

MPN: TRANSFLASH-SMD

Availability:
39 in stock
Original price £5.80 - Original price £5.80
Original price
£5.80
£5.80 - £5.80
Current price £5.80

With this kit you will learn to build a SMD two-transistor flasher that flashes two LEDs similar to train crossing lights. You will learn how to build a oscillator that generates a few pulses every second so that the LEDs flash. This kit is ideal for beginners who want to practice soldering surface mount electronic components to a PCB and learn how transistor oscillators work.

  • Battery: 9V PP3 (not included)
  • Operating voltage: 5-9V
  • PCB dimensions: 22 x 22mm
  • RoHS and REACH compliant


Instructions / documentation
What's in the kit?

  • 2 x MMBT3904 Transistor
  • 2 x 100uF Capacitor
  • 2 x 680R Resistor
  • 2 x 5.6K Resistor
  • 2 x Red LED
  • 1 x PP3 Connector
  • 1 x Transistor Flasher SMD PCB
Specification
Back Order Lead Time 30 Days
