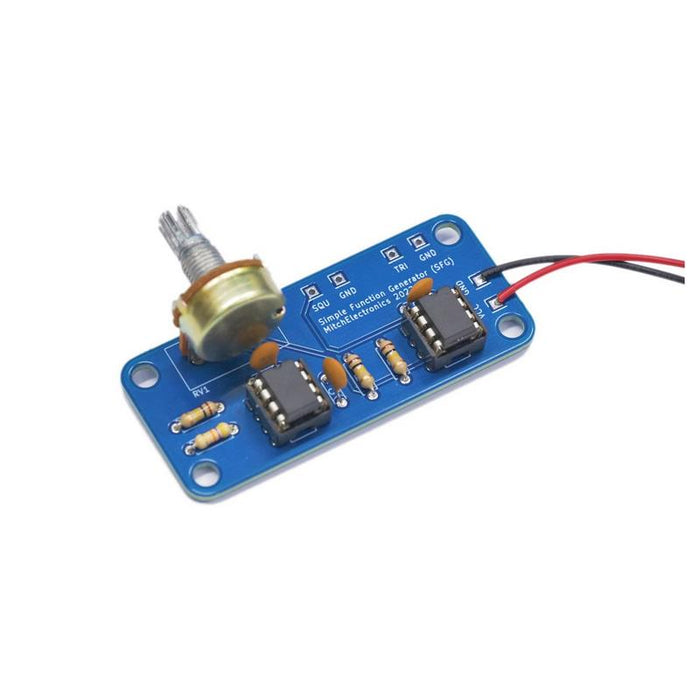

Simple Function Generator Electronics Kit
SKU 488298
MPN: SFG
Availability:
39 in stock
Original price
£6.73
-
Original price
£6.73
Original price
£6.73
£6.73
-
£6.73
Current price
£6.73
Need a basic function generator with variable triangular and square waveforms? Then look no further as this kit will allow you to build your own simple function generator!
In just about every electronic circuit there will be some signal that changes with time and in many circuits, this signal may be continuous. For example, the electricity from the mains supply has a sinusoidal shape (like an ocean wave). Another example would be the clock for a computer that has a square shape.Imagine a scenario where a digital circuit has been created and requires a clock from an external source. One could be built especially for the task however the clock source would most likely have a fixed frequency. Even if one was designed to have a variable frequency (which takes time), the device would only output a square wave. This is where the humble function generator steps in!
Not only does the SFG (Simple Function Generator), have both a square and triangle output but the frequency is also adjustable. The square and triangle wave are generated by the same source and thus are always in the same phase which means that the two waveforms follow each other constantly (useful if both waves are being used). But how does this circuit work? What active devices are used to create the oscillations and how is the frequency adjusted? Let's find out!
The Simple Function Generator is an ideal kit for teaching oscillator circuits using op-amps, and how function generators can be used to help test other circuits. The Simple Function Generator also has a very small component counting making it possible to be built in under an hour. As such, this kit is highly ideal for use in the classroom as a teaching resource on both circuit concepts and construction. Furthermore, the kit is ideal for those who need to incorporate an analogue function generator module that may otherwise be too cumbersome to design from scratch.
Operating voltage: 5-20V Operating Frequency: Variable Output Voltage: Square (0V to VCC - 1.5V) Output Current: Max 20mA PCB dimensions: 52 x 27mm RoHS and REACH compliant
Instructions / documentation
What's in the kit?2 x 8 DIP Socket 2 x LM358 3 x 100nF Capacitors 1 x 47K Resistor 3 x 100K Resistors 1 x 100K Potentiometer 1 x Red Wire 1 x Blue Wire 1 x Green Wire 2 x Black Wire 1 x PCB
In just about every electronic circuit there will be some signal that changes with time and in many circuits, this signal may be continuous. For example, the electricity from the mains supply has a sinusoidal shape (like an ocean wave). Another example would be the clock for a computer that has a square shape.Imagine a scenario where a digital circuit has been created and requires a clock from an external source. One could be built especially for the task however the clock source would most likely have a fixed frequency. Even if one was designed to have a variable frequency (which takes time), the device would only output a square wave. This is where the humble function generator steps in!
Not only does the SFG (Simple Function Generator), have both a square and triangle output but the frequency is also adjustable. The square and triangle wave are generated by the same source and thus are always in the same phase which means that the two waveforms follow each other constantly (useful if both waves are being used). But how does this circuit work? What active devices are used to create the oscillations and how is the frequency adjusted? Let's find out!
The Simple Function Generator is an ideal kit for teaching oscillator circuits using op-amps, and how function generators can be used to help test other circuits. The Simple Function Generator also has a very small component counting making it possible to be built in under an hour. As such, this kit is highly ideal for use in the classroom as a teaching resource on both circuit concepts and construction. Furthermore, the kit is ideal for those who need to incorporate an analogue function generator module that may otherwise be too cumbersome to design from scratch.
Instructions / documentation
What's in the kit?
Specification
| Back Order Lead Time | 30 Days |
