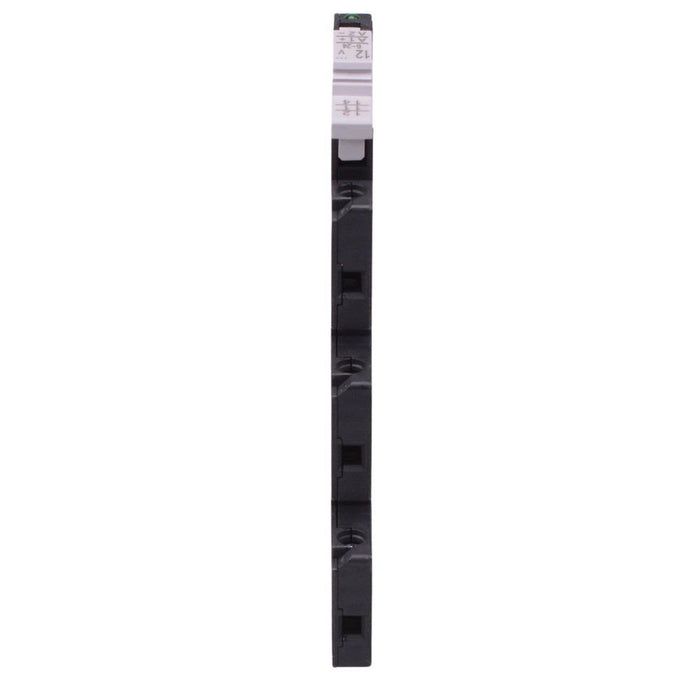

RV8H-L-D12 DIN Mount 12VDC 8mm Slim Interface Relay Screw Terminals SPDT IDEC

by IDEC
SKU 490244

MPN: RV8H-L-D12

Availability:
10 in stock
Original price £0
Original price £11.10 - Original price £11.10
Original price
Current price £11.10(inc. VAT)
£11.10 - £11.10
Current price £11.10
 More payment options

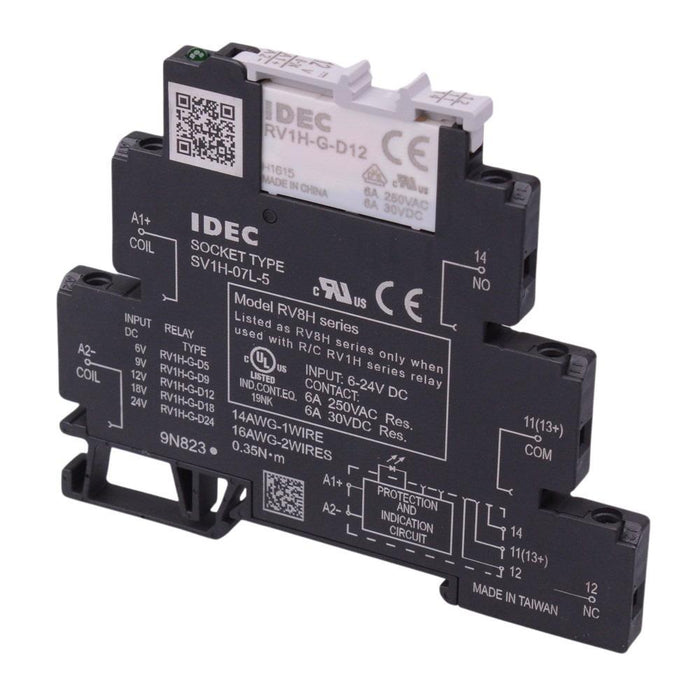

The RV8H-L-D12 is a interface relay by IDEC providing a compact solution for general purpose requirements. The relay can be used as a universal interface between the controller and the actuator to switch small and medium size loads. Installation time is greatly reduced with pre-assembled relays and socket. The relays are suitable for PLC and other controller outputs, industrial automation, panel builders, assembly machine applications, and other that require a high switching capability in a compact space.

  • Coil voltage: 12VDC
  • Allowable switching curent: 6A
  • Contact configuration: SPDT
  • DIN rail mounting
  • Screw terminals
  • Universal AC/DC socket with surge suppression and green LED indicator
  • Reverse polarity protected
  • Release lever for easy locking and removal of relay
  • Dimensons: 88.0 x 69.6 x 6.0mm (Height x depth x width)
  • Specification
    Ambient Temperature -40°C to +70°C
    Back Order Lead Time 130 Days
    Coil Resistance 820Ω
    Coil Voltage 12VDC
    Contact Arrangement SPDT
    Maximum Continuous Voltage 13.2VDC
    Maximum Switching Current 6A
    MOQ 1
    Mounting Type DIN Rail
    Power Consumption 0.2W
    Rated Load 6A 250VAC, 6A 30VDC
    Terminal Type Screw
