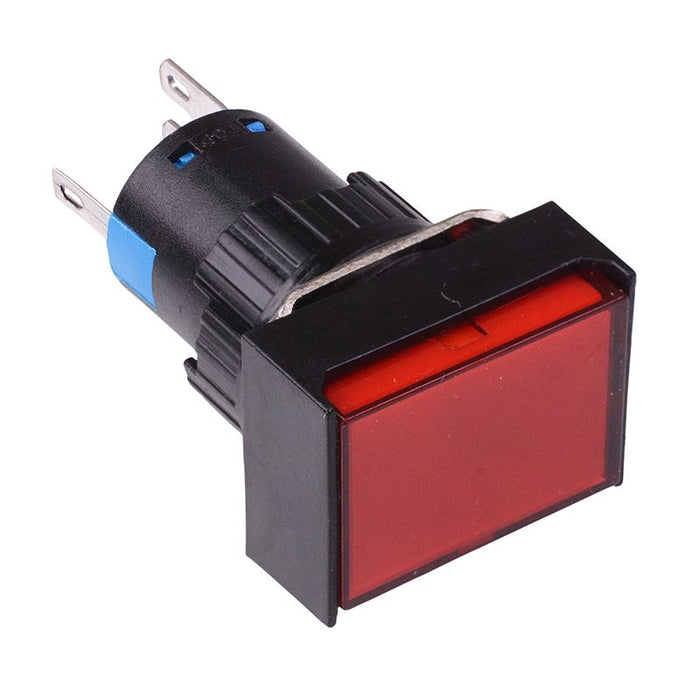

Red Rectangle Momentary 16mm Push Button Switch NO/NC 12V
SKU 486771
MPN: 486771
Availability:
22 in stock
Original price
£3.48
-
Original price
£3.48
Original price
£3.48
£3.48
-
£3.48
Current price
£3.48
Red momentary push button switch featuring a rectangle illuminated actuator and IP65 protection rating. The switch features NO and NC contacts and fits standard 16mm panel cut-outs. The switch is suitable for a wide range of applications including industrial, prototyping, automotive etc.
Red 12V illumination NO/NC contacts Solder terminals Maximum voltage: 250VAC/DC Maximum current: 5A Panel cut-out: 16mm Protection level: IP65 Button size: 15.4 x 21.4mm Dimensions: 40.5 x 28 x 18mm
Specification
| Actuation | Momentary |
| Back Order Lead Time | 30 Days |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Material | Silver Plated |
| Contact Rating | 5A 250VAC/DC |
| Current Rating | 5A |
| Electrical Life | 100,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 12VDC |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +55°C |
| Panel Cut Out | 16mm |
| Protection Level | IP65 |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
