Red Power Connector Housing 175A 600V
SKU 483472
MPN: 483472
Availability:
Out of stock
Sold out
Original price
£4.04
-
Original price
£4.04
Original price
£4.04
£4.04
-
£4.04
Current price
£4.04

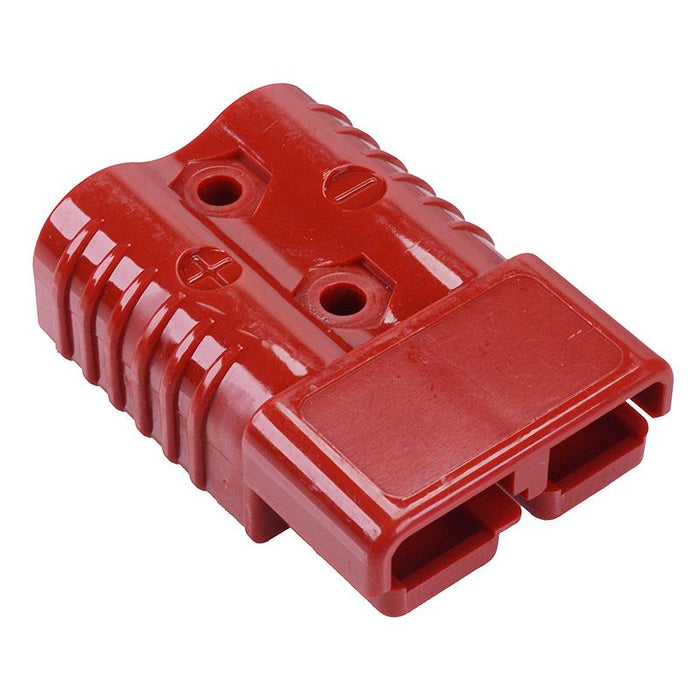

Red power connectors designed for easy connection and disconnection of high current cables such as batteries, welding etc. The connectors feature a short-circuit proof design and are connected together by turning one connector upside to fit together.
Low insertion force Genderless design Polarity markings on the body Rating: 175A 600V Dimensions: 79.3 x 54.3 x 26mm
Please note the terminals need to be purchased separately. 2 housings are needed to form a connection
Please note the terminals need to be purchased separately. 2 housings are needed to form a connection
Specification
| Back Order Lead Time | 30 Days |
| Contact Material | Silver Plated Copper |
| Current Rating | 175A |
| Housing Material | Polycarbonate |
| Mounting Type | Cable |
| Operating Temperature | -20°C to +125°C |
| Termination Method | Crimp |
| Voltage Rating | 600V |
