Red Mushroom Momentary 22mm Push Button Switch Stainless Steel IP67 NO/NC
SKU 490319
MPN: HBS1-AGQ22M-11/J/S/R
Availability:
48 in stock
Original price
£0
Original price
£8.70
-
Original price
£8.70
Original price
Current price
£8.70(inc. VAT)
£8.70
-
£8.70
Current price
£8.70
Quantity Discounts
| Buy 10 - 24 | Get 11% off | £7.74(inc. VAT) each |
| Buy 25 - 49 | Get 16% off | £7.31(inc. VAT) each |
| Buy 50 - 99 | Get 21% off | £6.87(inc. VAT) each |
| Buy 100+ | Get 25% off | £6.52(inc. VAT) each |

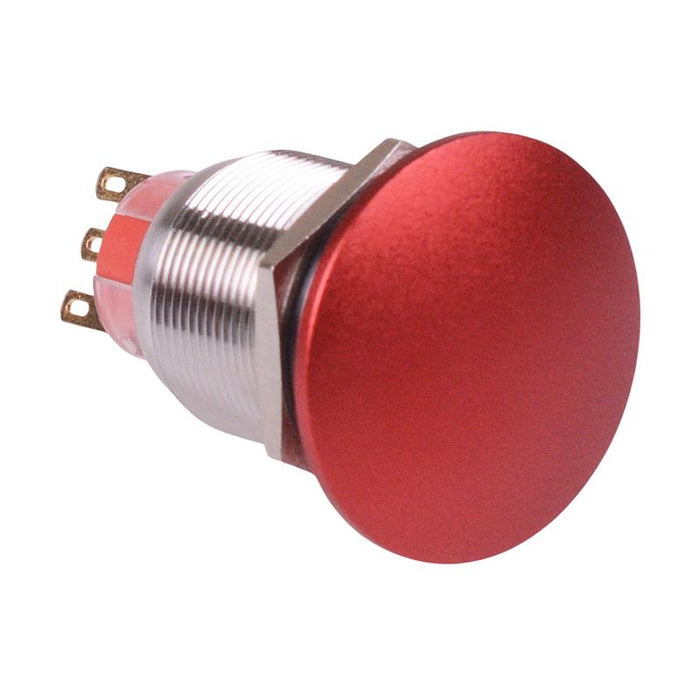

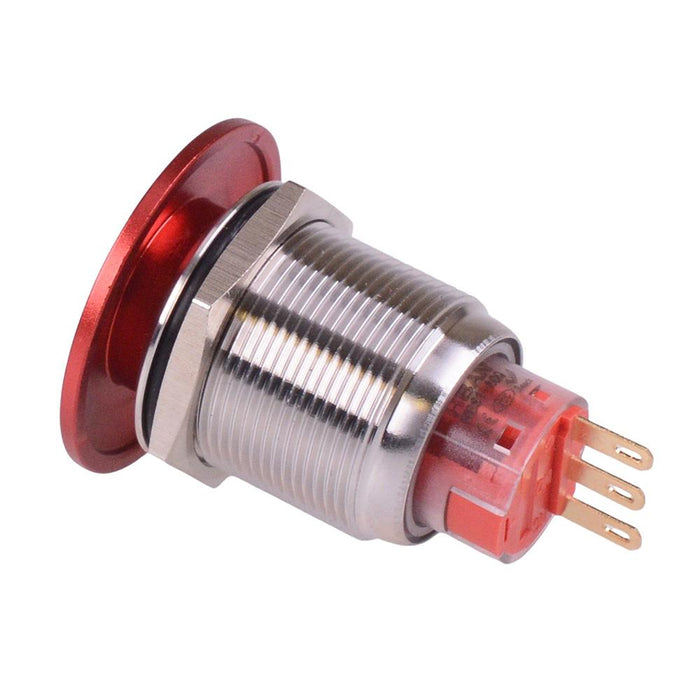

Red 22mm momentary vandal resistant push button switch featuring normally open SPST contacts. The switch features a red mushroom button and is constructed from a stainless steel housing. The switch features an IP67 protection rating and is suitable for a wide range of applications including security, control panels, industrial, automotive etc.
Off-(On) operation SPST-NO contacts Red mushroom button Panel cut-out: 22mm Panel thickness: 16mm max 2.8x0.5mm quick connect / solder terminals Rating: 5A 250V Protection rating: IP67 Head diameter: 31.8mm Dimensions: 48.3 x 31.8mm (height x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 45 Days |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Material | Silver Alloy |
| Contact Rating | 5A 250VAC |
| Current Rating | 5A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Material | Stainless Steel |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +65°C |
| Panel Cut Out | 22mm |
| Panel Thickness | 16mm Max |
| Protection Level | IP67 |
| Switch Operation | On-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
