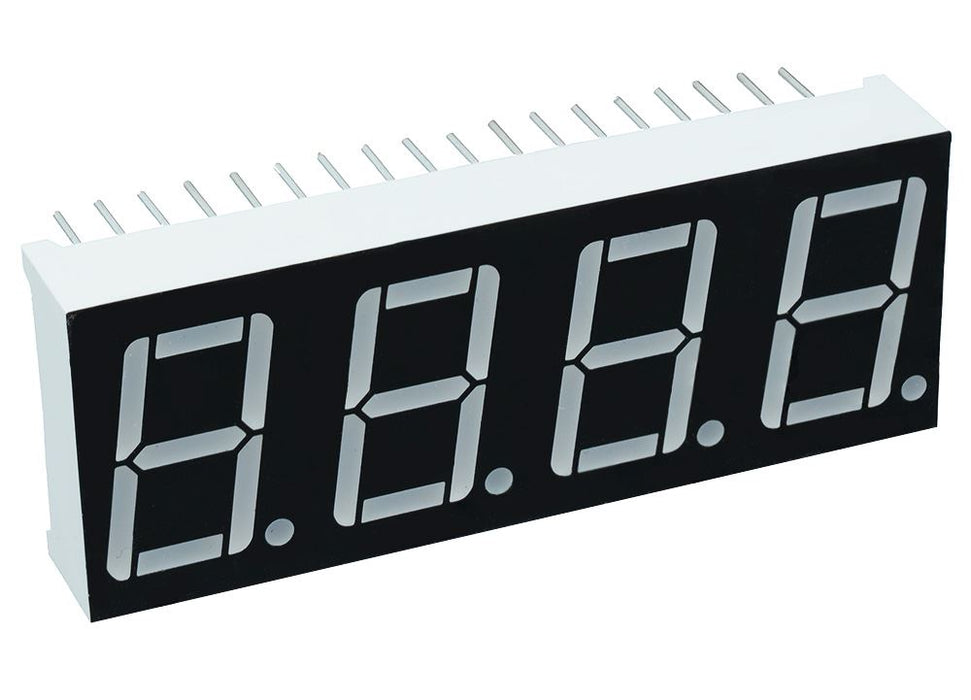

Red 0.56" 4-Digit Seven Segment Display Anode LED
by Toyo LED
SKU 311181
MPN: E40561-G-UR3-0-W
Availability:
231 in stock
Original price
£0
Original price
£1.50
-
Original price
£1.50
Original price
Current price
£1.50(inc. VAT)
£1.50
-
£1.50
Current price
£1.50
4 digit 7-segment display with excellent visibility and contrast. The LED provides a consistent brightness throughout the display and is suitable for PC Boards and Sockets mounting.
Common anode 7-segment size: 0.56” Black background Dimensions: 19.0 x 50.4 x 8.0mm
Specification
| Back Order Lead Time | 45 Days |
| Character Height | 0.56" |
| Character Width | 8.1mm |
| Colour | Red |
| Depth | 19mm |
| Forward Current | 30mA |
| Forward Voltage | 2.05V |
| Height | 8mm |
| Lens Colour | White Diffused |
| Luminous Intensity | 38mcd |
| Mounting Style | Through Hole |
| Number of Pins | 36 |
| Operating Temperature | -40°C to +85°C |
| Package | 50.4 x 19.0mm |
| Packaging | Bulk |
| Power Dissipation | 72mW |
| Wavelength | 635nm |
| Width | 50.4mm |
