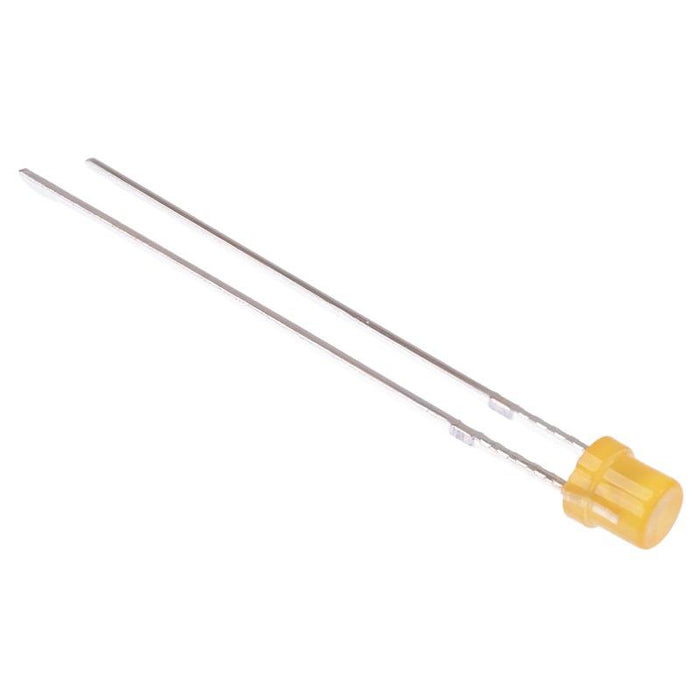

Orange 3mm Concave Diffused LED 150mcd 120°
by OptoSupply
SKU 484941
MPN: OSO5JA3PC4A
Availability:
747 in stock
Original price
£0.17
-
Original price
£0.17
Original price
£0.17
£0.17
-
£0.17
Current price
£0.17
Orange 3mm concave LED featuring a colour diffused package and 150mcd luminous intensity suitable for applications including use as indicators, backlighting and illumination.
Luminous intensity: 150mcd
Wavelength: 605nm Viewing angle: 120° Forward voltage: 2.1V Forward current: 30mA Suitable for through-hole mounting Cathode identified as the shorter lead 2.54mm lead pitch Colour diffused lens Excellent weather resistance Long lifespan
Specification
| Back Order Lead Time | 5 Days |
| Colour | Orange |
| Diameter | 3mm |
| Forward Current | 30mA |
| Forward Voltage | 2.1V |
| Lens Colour | Orange |
| Lens Shape | Concave |
| Luminous Intensity | 150mcd |
| Mode | Constant |
| MOQ | 5 |
| Mounting Style | Through Hole |
| Number of Pins | 2 |
| Operating Temperature | -30°C to +85°C |
| Package | 3mm |
| Packaging | Bulk |
| Power Dissipation | 78mW |
| Viewing Angle | 120° |
| Wavelength | 605nm |
