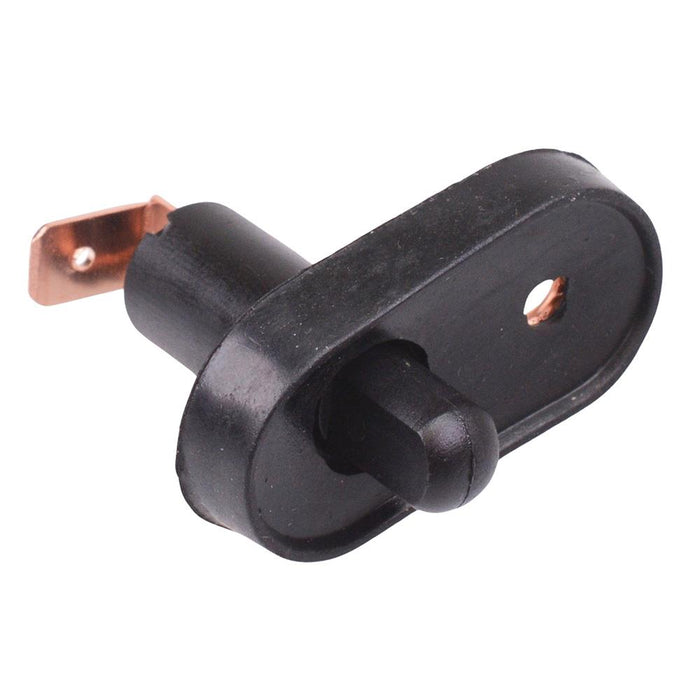

Momentary Automotive Door Switch 20A 12V
SKU 489306
MPN: ASW-18
Availability:
Out of stock
Sold out
Original price
£0
Original price
£1.11
-
Original price
£1.11
Original price
Current price
£1.11(inc. VAT)
£1.11
-
£1.11
Current price
£1.11
Plunger push button switch featuring a momentary action and suitable for use with doors in automotive applications.

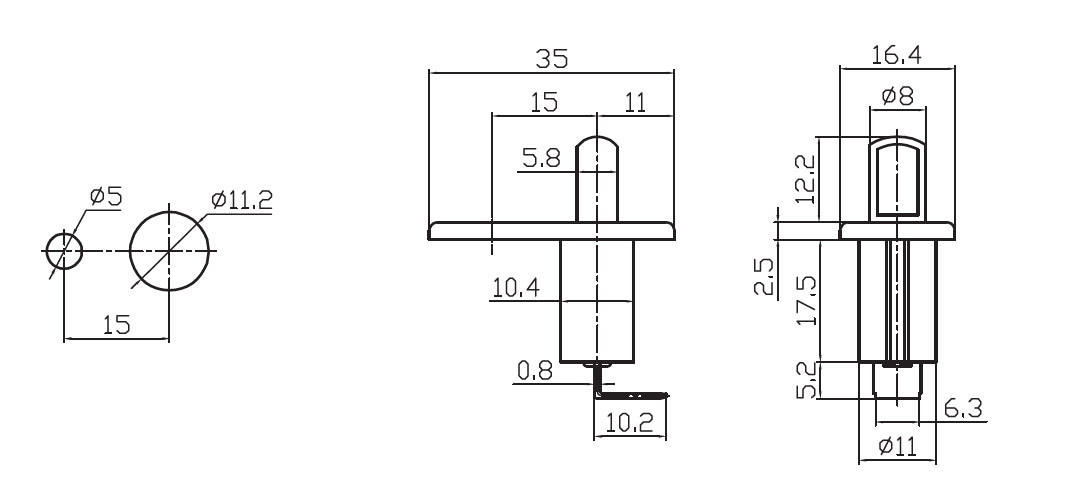

Rating: 20A 12VDC Action: On-(Off) 6.3mm quick connect terminal Dimensions: 37.4 x 35 x 16.4mm (height x length x width)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 120 Days |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Rating | 20A 12VDC |
| Current Rating | 20A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 11.2mm |
| Switch Operation | On-(Off) |
| Terminal Type | Quick Connect |
| Voltage Rating | 12VDC |
