Miniature SPDT Reed Switch 50mA 24VDC
SKU 482566
MPN: 482566
Availability:
72 in stock
Original price
£0
Original price
£1.40
-
Original price
£1.40
Original price
Current price
£1.40(inc. VAT)
£1.40
-
£1.40
Current price
£1.40

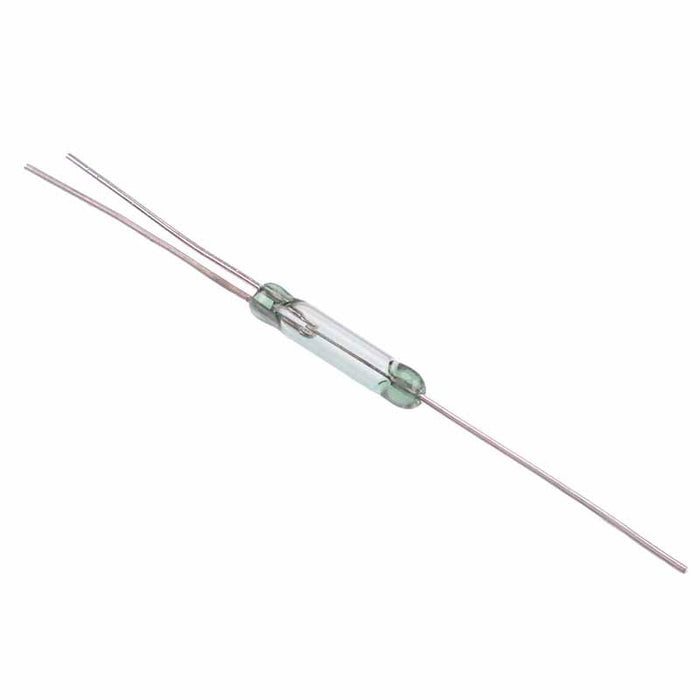

Miniature reed switch featuring SPDT contacts hemetically sealed within a glass tube. The switch features a quick response time and is lightweight making them suitable for low power applications.
Contacts: SPDT Dimensions: 2.5 x 16mm (diameter x length) Maximum switching voltage: 24VDC Maximum switching current: 50mA Pull-In value: 10-25AT
Specification
Back Order Lead Time | 120 Days |
Bounce Time | 0.4ms |
Carry Current | 0.1A |
Contact Configuration | SPDT |
Diameter | 2.5mm |
Drop Out Sensitivity | 5AT Min |
Length | 16mm |
Material | Rhodium |
Maximum Switching Current | 0.05A |
Maximum Switching Voltage | 24VDC |
Operating Temperature | -10°C to +60°C |
Pull In Sensitivity | 10-25AT |
Release Time | 0.2ms |
