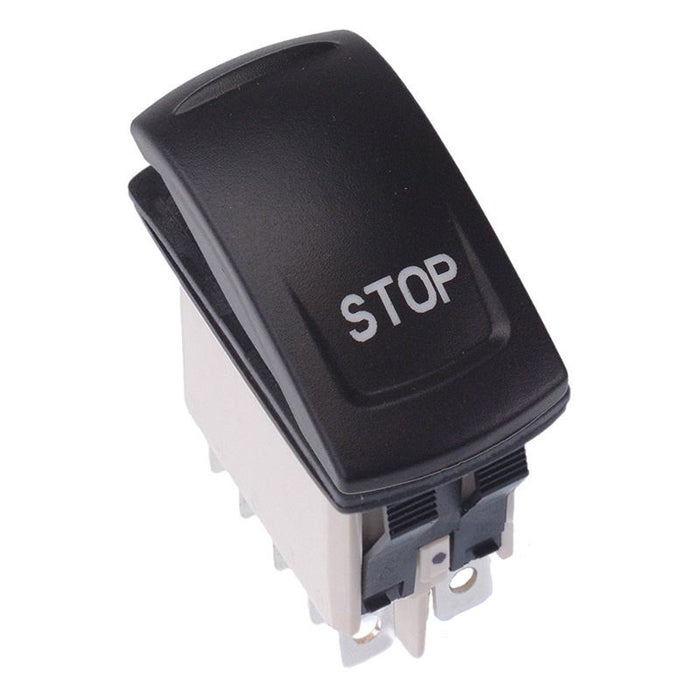

KR46CAKJJG22NXXXX06 STOP Latching Red 24V LED Auto Rocker Switch DPDT IP68 APEM
by APEM
SKU 932697
MPN: KR46CAKJJG22NXXXX06
Availability:
Only 3 left!
Original price
£0
Original price
£27.40
-
Original price
£27.40
Original price
Current price
£27.40(inc. VAT)
£27.40
-
£27.40
Current price
£27.40
Quantity Discounts
Buy 5 - 9 | Get 11% off | £24.39(inc. VAT) each |
Buy 10 - 24 | Get 17% off | £22.74(inc. VAT) each |
Buy 25 - 49 | Get 22% off | £21.37(inc. VAT) each |
Buy 50+ | Get 26% off | £20.28(inc. VAT) each |
The KR46CAKJJG22NXXXX06 is an attractive rugged automotive rocker switch from the KR series by APEM, sealed to IP68. The switch features quick connect terminals and long life expectancy, suitable for a wide range of auto applications.
On-On DPDT contacts
Red 24V LED
illuminated symbols
Solder / quick connect terminals
10 terminals for use with U2292
Silver contacts
Sealed to IP68
Specification
Actuation | Latching |
Back Order Lead Time | 5 Days |
Contact Configuration | DPDT |
Contact Rating | 5A 24VDC |
Current Rating | 5A |
Illuminated | Yes |
Illumination Voltage | 24VDC |
Material | PA66 |
Mounting Style | Panel |
Number of Poles | 2 |
Number of Positions | 2 |
Operating Temperature | -40°C to +85°C |
Panel Cut Out | 36.8 x 21.08mm |
Panel Thickness | 2-3.5mm |
Protection Level | IP68 |
Switch Operation | On-On |
Terminal Type | Quick Connect |
Voltage Rating | 24VDC |
