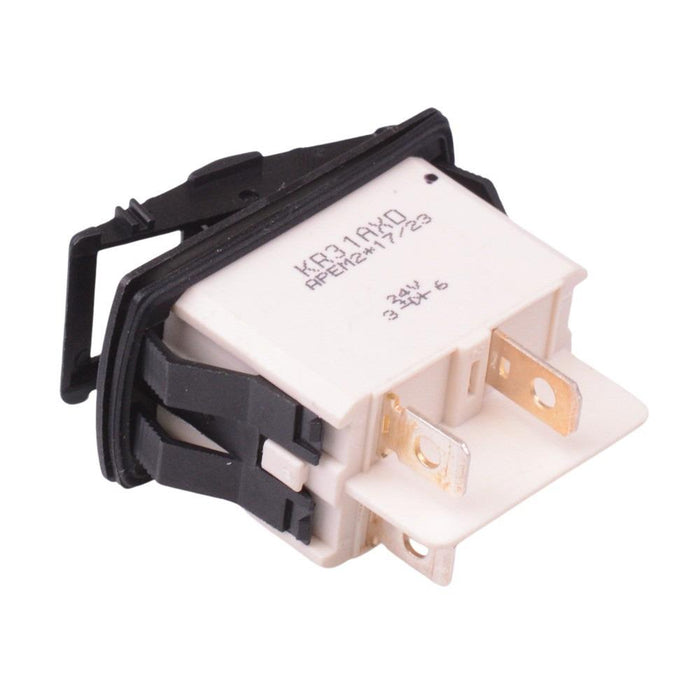

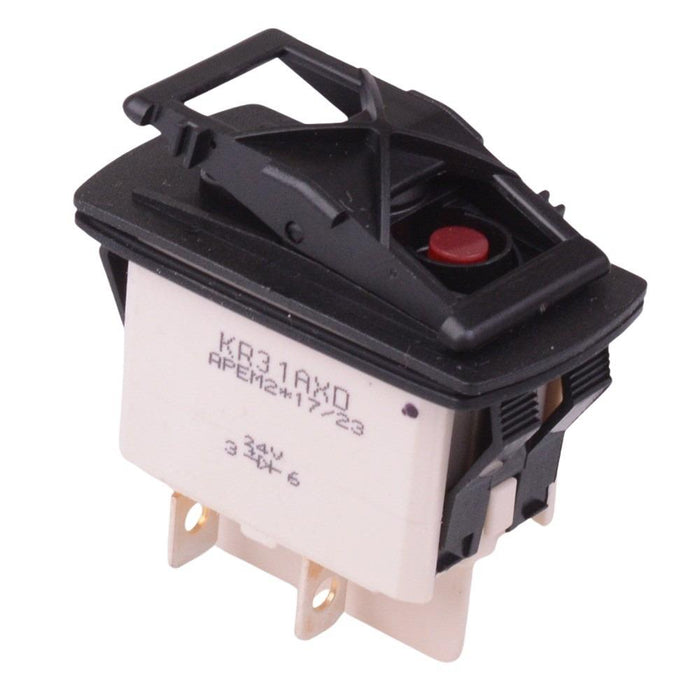

KR312AKJXD On-Off Auto Rocker Switch Red 24V illumination SPDT IP68
by APEM
SKU 490033
MPN: KR312AKJXD
Availability:
38 in stock
Original price
£0
Original price
£15.24
-
Original price
£15.24
Original price
Current price
£15.24(inc. VAT)
£15.24
-
£15.24
Current price
£15.24
Quantity Discounts
| Buy 10 - 24 | Get 11% off | £13.56(inc. VAT) each |
| Buy 25 - 49 | Get 16% off | £12.80(inc. VAT) each |
| Buy 50 - 99 | Get 21% off | £12.04(inc. VAT) each |
| Buy 100+ | Get 25% off | £11.43(inc. VAT) each |
The KR312AKDXD is an attractive rugged automotive rocker switch from the KR series by APEM. The switch features quick connect terminals and long life expectancy, suitable for a wide range of automotive applications.
On-Off SPST contacts 24V Red illumination IP68 Rated Protection Solder / quick connect terminals Silver contacts Rating: 5A 24VDC Panel cut-out: 36.8 x 21.08mm Panel thickness: 0.8 to 4.6mm
Specification
| Actuation | Latching |
| Contact Configuration | SPST |
| Contact Material | Silver |
| Contact Rating | 5A 24VDC |
| Current Rating | 5A |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 24V |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 36.8 x 21.08mm |
| Panel Thickness | 0.8mm to 4.6mm |
| Protection Level | IP68 |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 24VDC |
