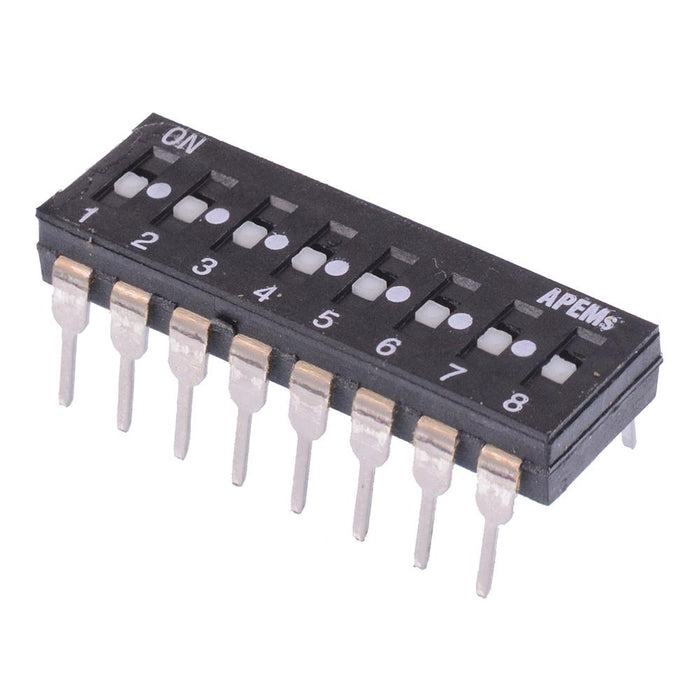

IK0800000 APEM 8-Way PCB DIP Switch Flush Actuator SPST
by APEM
SKU 487251
MPN: M408SNL
Availability:
1680 in stock
Original price
£0
Original price
£1.15
-
Original price
£1.15
Original price
Current price
£1.15(inc. VAT)
£1.15
-
£1.15
Current price
£1.15
The IK0800000 is a 8 way DIP switch featuring SPST contacts and gold plated terminals. The switch features self-cleaning wiping contacts and 25mA 24VDC switch rating, suitable for through hole PCB applications.
8 ways Flush actuator Switch rating: 100mA 24VDC Contact rating: 100mA 48VDC Gold plated brass terminals 2.54mm pitch
Specification
Actuation | Latching |
Back Order Lead Time | 10 Days |
Colour | Black |
Contact Configuration | SPST |
Contact Material | Gold Plated |
Contact Rating | 100mA 48VDC |
Current Rating | 100mA |
Electrical Life | 2,000 Cycles |
Material | PBT |
Mounting Style | Through Hole |
Number of Positions | 2 |
Number of Ways | 8 |
Operating Temperature | -20°C to +70°C |
Pitch | 2.54mm |
Product Series | IK |
Switch Operation | On-Off |
Terminal Type | Solder |
Voltage Rating | 24VDC |
