YW4B-A4E11G Green 22mm Metal Bezel Mushroom Maintained Push Button Switch 1NO-1NC IP65 IDEC
by IDEC
SKU 932286
MPN: YW4B-A4E11G
Availability:
20 in stock
Original price
£0
Original price
£17.43
-
Original price
£17.43
Original price
Current price
£17.43(inc. VAT)
£17.43
-
£17.43
Current price
£17.43
Quantity Discounts
| Buy 5 - 9 | Get 11% off | £15.51 each |
| Buy 10 - 24 | Get 17% off | £14.47 each |
| Buy 25 - 49 | Get 22% off | £13.60 each |
| Buy 50+ | Get 26% off | £12.90 each |

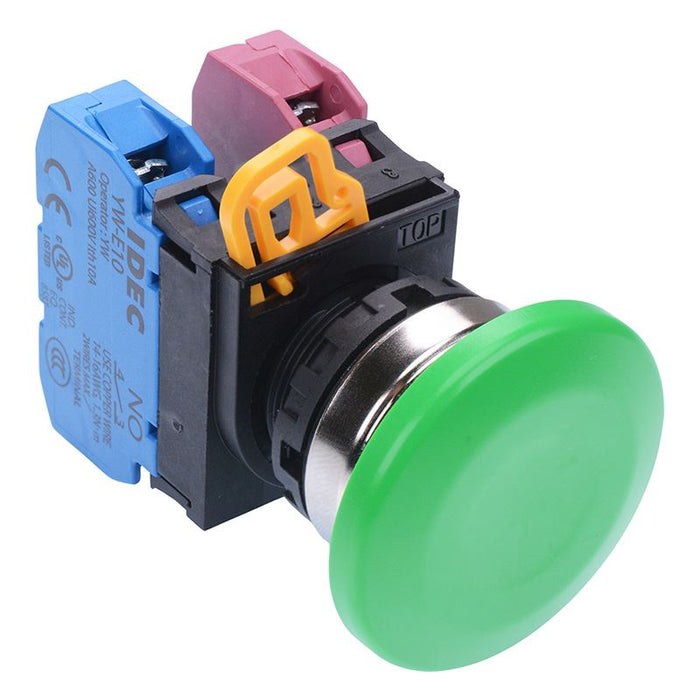

The YW4B-A4E11G is a green maintained push button switch with a mushroom head from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and metal bezel, suitable for standard 22mm panel cut-outs for industrial applications.
Metal Bezel 1NO-1NC contacts Voltage rating: 600V Current rating: 10A 22mm panel cut-out 40mm button diameter IP65 protection rating Self cleaning contacts Interchangeable switch components Dimensions: 56.8 x 30 x 41.4mm (length x width x height)
Specification
| Actuation | Maintained |
| Back Order Lead Time | 10 Days |
| Colour | Green |
| Contact Configuration | 1NO-1NC |
| Contact Rating | 2A 380V, 6A 240V |
| Current Rating | 10A |
| Electrical Life | 100,000 Cycles |
| Head Type | Mushroom |
| Illuminated | No |
| Illumination Colour | Green |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 22.3mm |
| Panel Thickness | 0.8-6mm |
| Product Series | YW |
| Protection Level | IP65 |
| Terminal Type | Screw |
| Voltage Rating | 600V |
