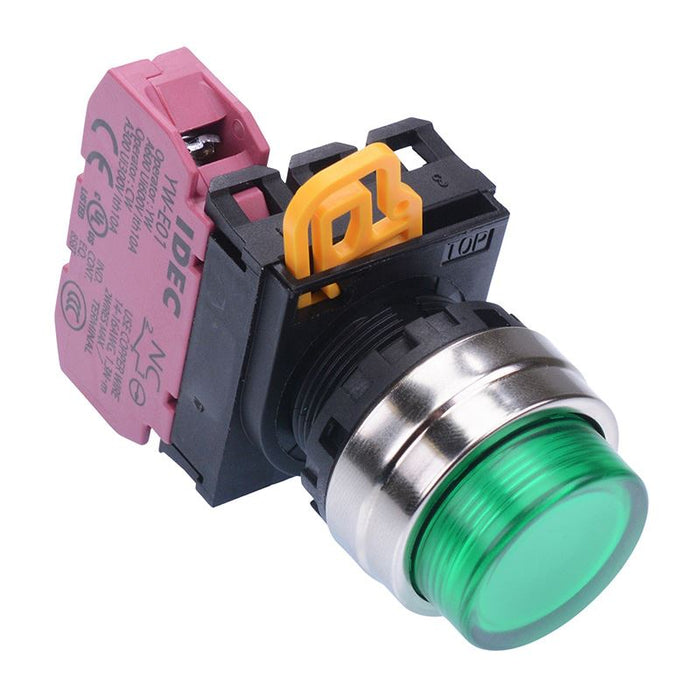

YW4L-A2E01Q0G Green 22mm Metal Bezel Maintained Push Button Switch NC IP65 IDEC
by IDEC
SKU 932310
MPN: YW4L-A2E01Q0G
Availability:
22 in stock
Original price
£0
Original price
£13.07
-
Original price
£13.07
Original price
Current price
£13.07(inc. VAT)
£13.07
-
£13.07
Current price
£13.07
Quantity Discounts
Buy 5 - 9 | Get 11% off | £11.63 each |
Buy 10 - 24 | Get 17% off | £10.85 each |
Buy 25 - 49 | Get 22% off | £10.19 each |
Buy 50+ | Get 26% off | £9.67 each |
The YW4B-A2E01Q0G is a green maintained push button switch from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and metal bezel, suitable for standard 22mm panel cut-outs for industrial applications.
Metal Bezel NC contacts Voltage rating: 600V Current rating: 10A 22mm panel cut-out 23.6mm button diameter IP65 protection rating Self cleaning contacts Interchangeable switch components Dimensions: 64.8 x 30 x 41.4mm (length x width x height)
Specification
Actuation | Maintained |
Back Order Lead Time | 10 Days |
Colour | Green |
Contact Configuration | 1NC |
Contact Rating | 2A 380V, 6A 240V |
Current Rating | 10A |
Electrical Life | 100,000 Cycles |
Head Type | Extended |
Illuminated | No |
Illumination Colour | White |
Mounting Style | Panel |
Number of Positions | 2 |
Operating Temperature | -20°C to +55°C |
Panel Cut Out | 22.3mm |
Panel Thickness | 0.8-6mm |
Product Series | YW |
Protection Level | IP65 |
Terminal Type | Screw |
Voltage Rating | 600V |
