YW4K-3AE11N2 22mm Metal Bezel 3 Position Maintained Key Switch 1NO-1NC IP65 IDEC
by IDEC
SKU 932658
MPN: YW4K-3AE11N2
Availability:
Only 5 left!
Original price
£0
Original price
£29.20
-
Original price
£29.20
Original price
Current price
£29.20(inc. VAT)
£29.20
-
£29.20
Current price
£29.20
Quantity Discounts
| Buy 5 - 9 | Get 11% off | £25.99 each |
| Buy 10 - 24 | Get 17% off | £24.24 each |
| Buy 25 - 49 | Get 22% off | £22.78 each |
| Buy 50+ | Get 26% off | £21.61 each |

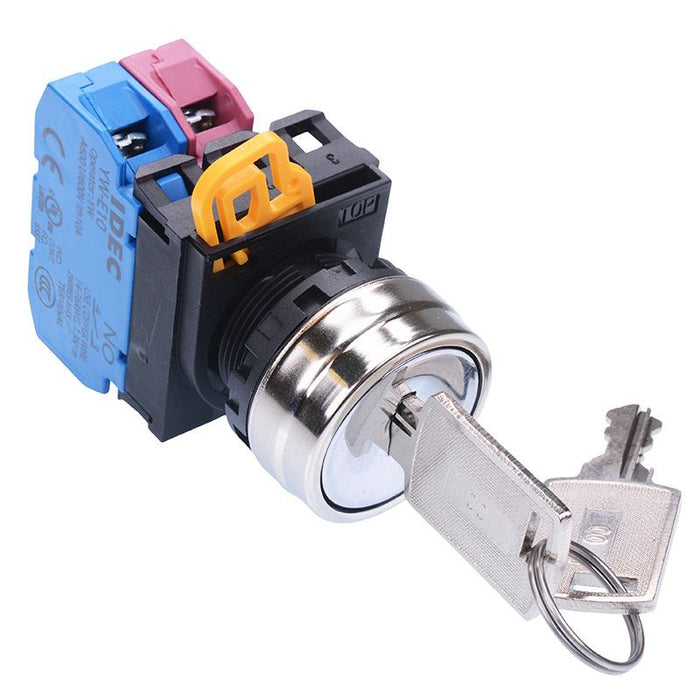

The YW4K-3AE11N2 is a 3 position maintained key switch from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and metal bezel, suitable for standard 22mm panel cut-outs for industrial applications.
Metal Bezel 1NO-1NC contacts Voltage rating: 600V Current rating: 10A 22mm panel cut-out IP65 protection rating Comes with 2 keys Self cleaning contacts Interchangeable switch components Dimensions: 83.8 x 30 x 41.4mm (length x width x height)
Specification
| Actuation | Maintained |
| Back Order Lead Time | 10 Days |
| Contact Configuration | 1NO-1NC |
| Contact Rating | 2A 380V, 6A 240V |
| Current Rating | 10A |
| Electrical Life | 100,000 Cycles |
| Head Type | Key |
| Illuminated | No |
| Illumination Colour | White |
| Key Index Angle | 45° |
| Key Withdrawal Position | 1 & 2 |
| Mounting Style | Panel |
| Number of Positions | 3 |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 22.3mm |
| Panel Thickness | 0.8-6mm |
| Product Series | YW |
| Protection Level | IP65 |
| Terminal Type | Screw |
| Voltage Rating | 600V |
