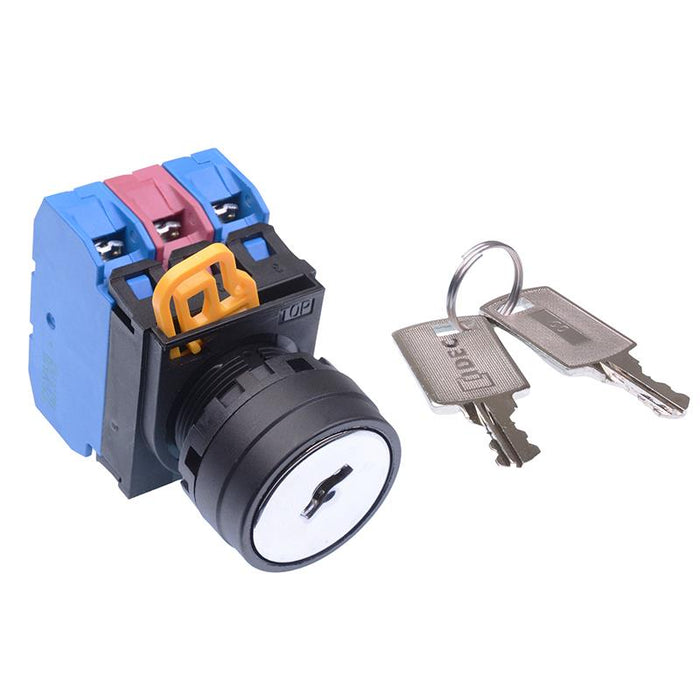

IDEC 22mm 3 Position Maintained Key Switch 2NO-1NC IP65 YW1K-3AE21
by IDEC
SKU 931909
MPN: YW1K-3AE21
Availability:
Out of stock
Sold out
Original price
£25.57
-
Original price
£25.57
Original price
£25.57
£25.57
-
£25.57
Current price
£25.57
The YW1K-3AE21 is a 3 position maintained key switch from the YW series manufactured by IDEC. The switch features a heavy-duty rugged construction and is suitable for standard 22mm panel cut-outs for industrial applications.
2NO-1NC contacts Voltage rating: 600V Current rating: 10A 22mm panel cut-out IP65 protection rating Comes with 2 keys Self cleaning contacts Interchangeable switch components Dimensions: 83.8 x 30 x 41.4mm (length x width x height)
Specification
| Actuation | Maintained |
| Back Order Lead Time | 10 Days |
| Contact Configuration | 2NO-1NC |
| Contact Rating | 2A 380V, 6A 240V |
| Current Rating | 10A |
| Electrical Life | 100,000 Cycles |
| Head Type | Key |
| Illuminated | No |
| Illumination Colour | Red |
| Key Index Angle | 45° |
| Key Withdrawal Position | 1 & 2 |
| Mounting Style | Panel |
| Number of Positions | 3 |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 22.3mm |
| Panel Thickness | 0.8-6mm |
| Product Series | YW |
| Protection Level | IP65 |
| Rated Thermal Current | 10A |
| Terminal Type | Screw |
| Voltage Rating | 600V |
