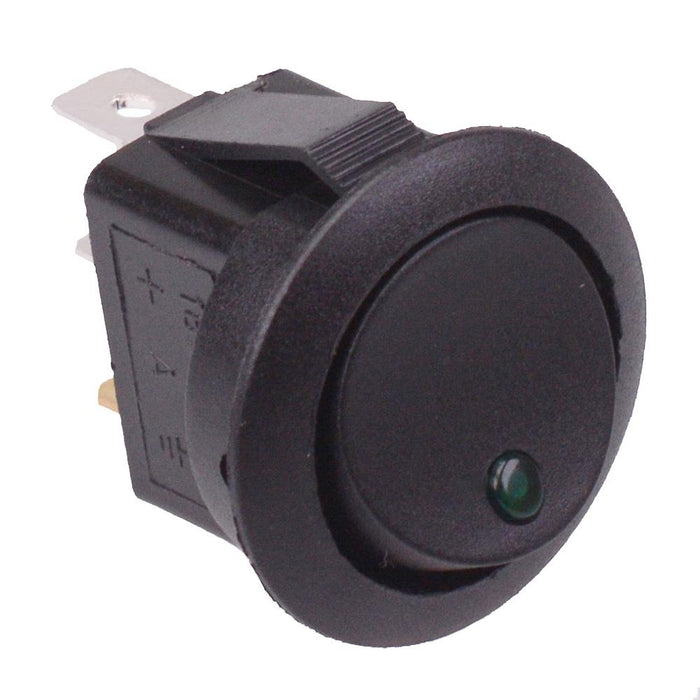

Green LED Round Rocker Switch 12V SPST
SKU 551655
MPN: 551655
Availability:
339 in stock
Original price
£0
Original price
£1.42
-
Original price
£1.42
Original price
Current price
£1.42(inc. VAT)
£1.42
-
£1.42
Current price
£1.42
Circular rocker switch featuring a red LED suitable for 12V applications. The switch features quick connect terminals and snap-in mounting making the switch easy to install.
Green LED On-Off operation SPST contacts 4.8mm terminals Rating: 16A 12VDC 20mm panel cut-out
Specification
Actuation | Latching |
Back Order Lead Time | 45 Days |
Colour | Green |
Contact Configuration | SPST |
Contact Rating | 16A 12VDC |
Current Rating | 16A |
Electrical Life | 10,000 Cycles |
Illuminated | Yes |
Illumination Colour | Green |
Illumination Voltage | 12VDC |
Material | PA66 |
Mounting Style | Panel |
Number of Poles | 1 |
Number of Positions | 2 |
Operating Temperature | -10°C to +85°C |
Panel Cut Out | 20mm |
Switch Operation | On-Off |
Terminal Type | Quick Connect |
Voltage Rating | 12VDC |
