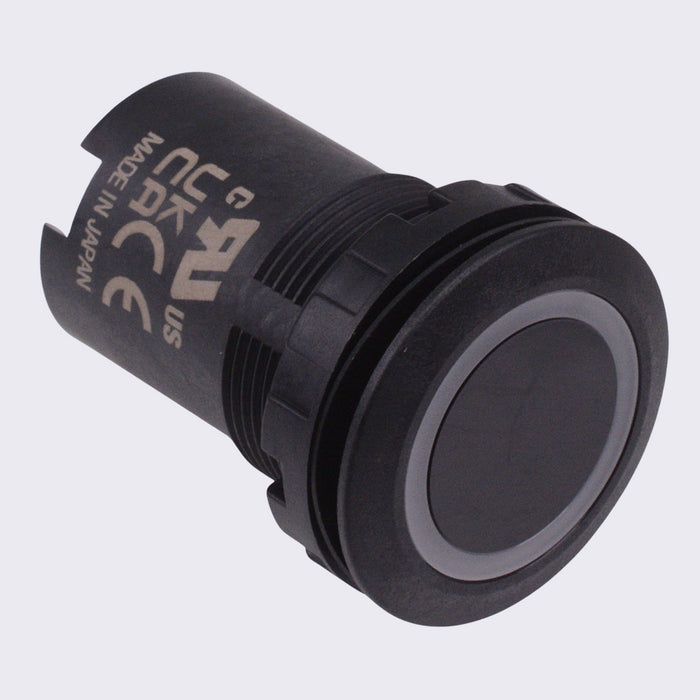

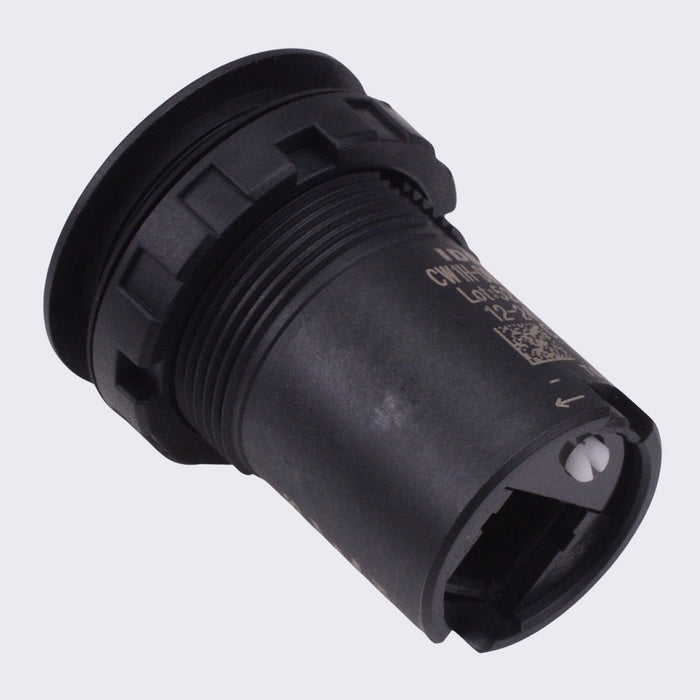

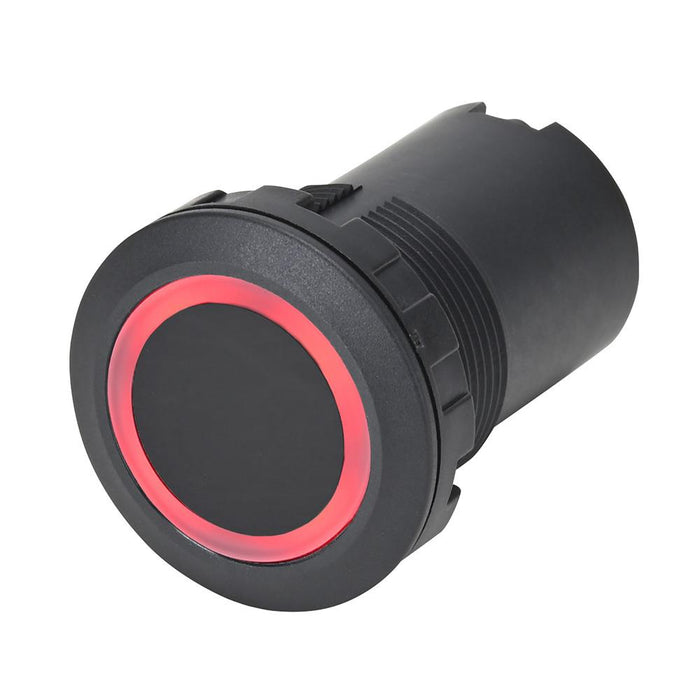

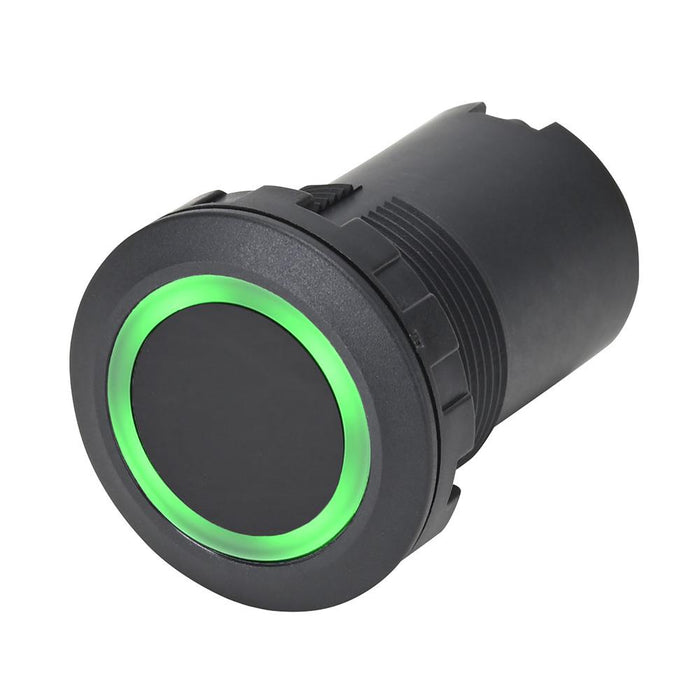

CW1H-DM1NGR-C IDEC Green / Red LED Flush Black Touchless Switch IP67
by IDEC
SKU 488266
MPN: CW1H-DM1NGR-C
Availability:
Only 5 left!
Original price
£55.24
-
Original price
£55.24
Original price
£55.24
£55.24
-
£55.24
Current price
£55.24
The CW1H-DM1NGR-C is a flush 22mm touchless switch manufactured by IDEC. The switch features a black plastic bezel and green / red illumination with PNP control method. The switch can be operated by just waving your hand and it has a maximum sensing range from 70mm to 270mm, adjustable with the rear sensitivity control.
The switch features the functions of a photoelectric sensor and two indicator lights integrated into a single switch. The touchless CW series is suitable for replacing existing mechanical switches and reduces the risk of viruses and bacteria spreading in applications with frequent access. Due to the innovative and durable design the switch is suitable for a wide range of applications including use in public facilities, parking garages, warehousing, production lines, human sensing etc.
Green / red LED illumination Panel cut-out: 22.3mm PNP control method Black plastic bezel Sensing method: diffuse-reflective Adjustable maximum sensing range: 70mm to 270mm Rated voltage: 12-24VDC Current draw: 40mA maximum (main circuit), 20mA maximum (illumination part) Dimensions: 37 x 28mm (height x diameter)
The switch features the functions of a photoelectric sensor and two indicator lights integrated into a single switch. The touchless CW series is suitable for replacing existing mechanical switches and reduces the risk of viruses and bacteria spreading in applications with frequent access. Due to the innovative and durable design the switch is suitable for a wide range of applications including use in public facilities, parking garages, warehousing, production lines, human sensing etc.
Specification
Back Order Lead Time | 10 Days |
Colour | Green / Red |
Contact Rating | 40mA 24VDC |
Current Rating | 40mA |
Head Type | Flush |
Illuminated | Yes |
Illumination Colour | Green / Red |
Mounting Style | Panel |
Operating Temperature | -25°C to +55°C |
Panel Cut Out | 22.3mm |
Product Series | CW |
Protection Level | IP67 |
Terminal Type | Connector |
Voltage Rating | 24VDC |
