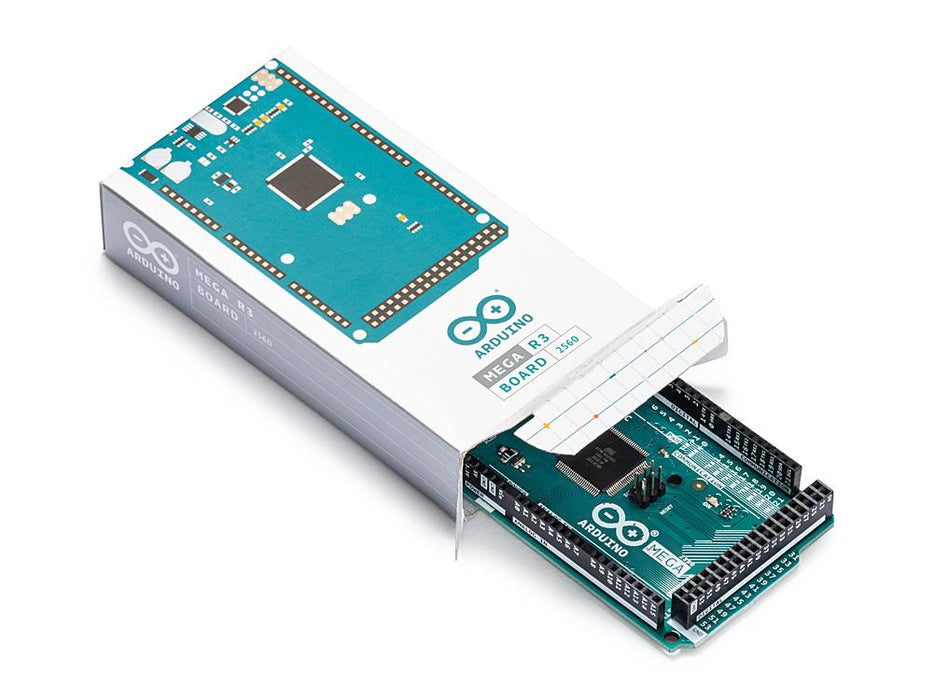

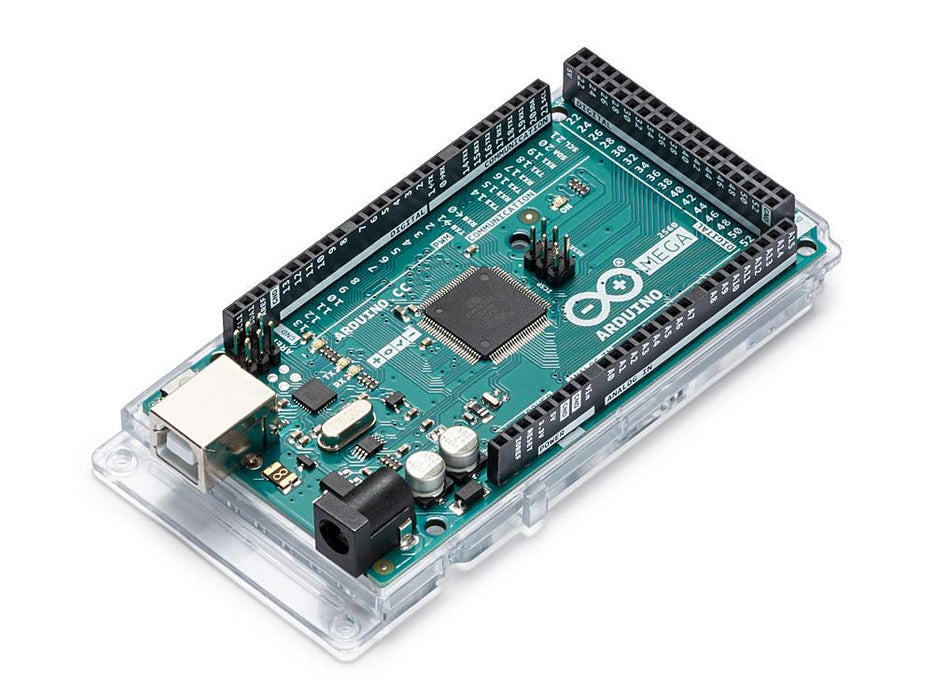

Arduino® Mega 2560 Rev3
by Arduino
SKU 490724
MPN: A000067
Availability:
44 in stock
Original price
£42.50
-
Original price
£42.50
Original price
£42.50
£42.50
-
£42.50
Current price
£42.50

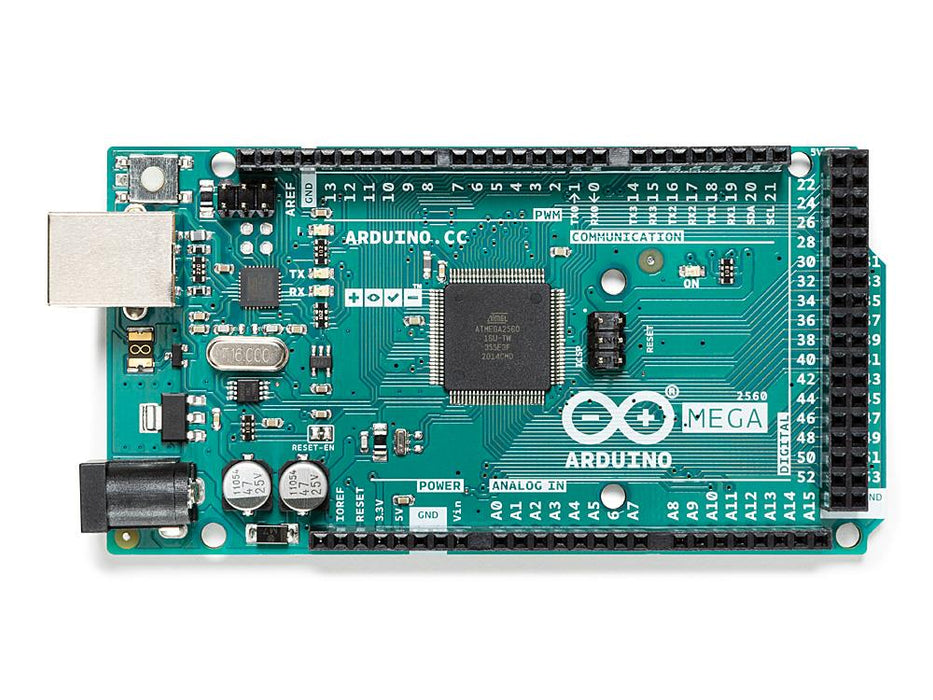

The Arduino Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega 2560 board is compatible with most shields designed for the Uno and the former boards Duemilanove or Diecimila. The Mega 2560 is an update to the Arduino Mega.
High performance Arduino compatibility Easy to use Reliable connection Wide application range
Specification
| Analog Inputs | 16 |
| Clock Speed | 16 MHz |
| DC Current for Pin | 50 mA (3.3V) |
| DC Current Per I/O Pin | 20 mA |
| Digital I/O Pins | 54 (15 PWM) |
| EEPROM | 4KB |
| Input Voltage | 7-12V |
| LED Built In | 13 |
| Memory | 256KB Flash |
| Microcontroller | ATmega2560 |
| Operating Voltage | 5V |
| SRAM | 8KB |
| Type | Board |
