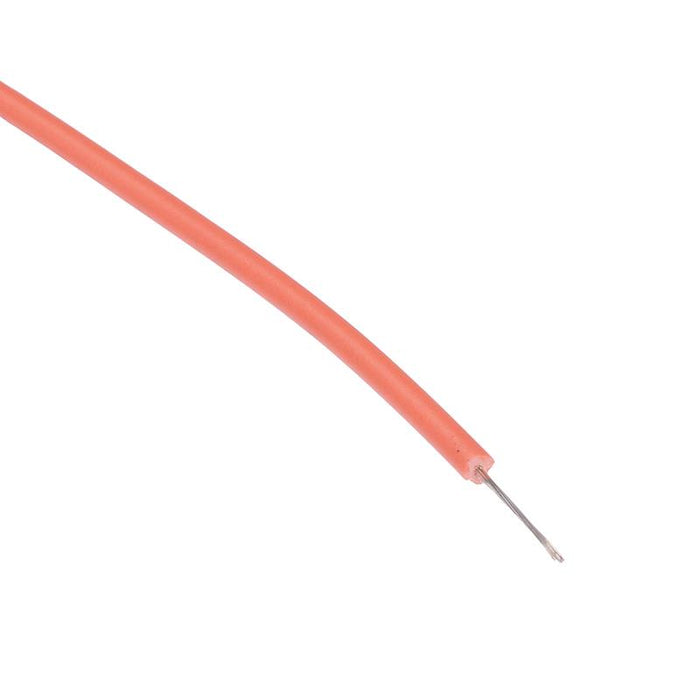

610m Orange UL1015 24AWG 11/0.16mm Tinned Copper Stranded Wire
SKU 990273
MPN: 990273
Availability:
Out of stock
Sold out
Original price
£0
Original price
£71.53
-
Original price
£71.53
Original price
Current price
£71.53(inc. VAT)
£71.53
-
£71.53
Current price
£71.53
Quantity Discounts
| Buy 5 - 9 | Get 11% off | £63.66(inc. VAT) each |
| Buy 10 - 24 | Get 17% off | £59.37(inc. VAT) each |
| Buy 25 - 49 | Get 22% off | £55.79(inc. VAT) each |
| Buy 50+ | Get 26% off | £52.93(inc. VAT) each |
Orange 24AWG multi-stranded copper wire featuring PVC insulation manufactured to UL1015 specification. The PVC insulation provides excellent resistance to oil, petrol, diesel and high temperatures. The cable is suitable for automotive and various other applications requiring a high performance wire.
Overall diameter: 2.2mm Wide temperature range Tinned copper conductor Rated voltage: 600V 11/0.16mm copper stranding Supplied in a 610 metre coil
Specification
| Back Order Lead Time | 120 Days |
| Colour | Orange |
| Conductor Cross Section | 0.20mm² |
| Conductor Diameter | 0.61mm |
| Conductor Material | Tinned Copper |
| Conductor Stranding | 11/0.16mm |
| Current Rating | 4A |
| Insulation Material | PVC |
| Insulation Thickness | 0.80mm |
| Operating Temperature | -30°C to 105°C |
| Overall Diameter | 2.2mm |
| Voltage Rating | 600V |
| Wire Gauge | 24AWG |
