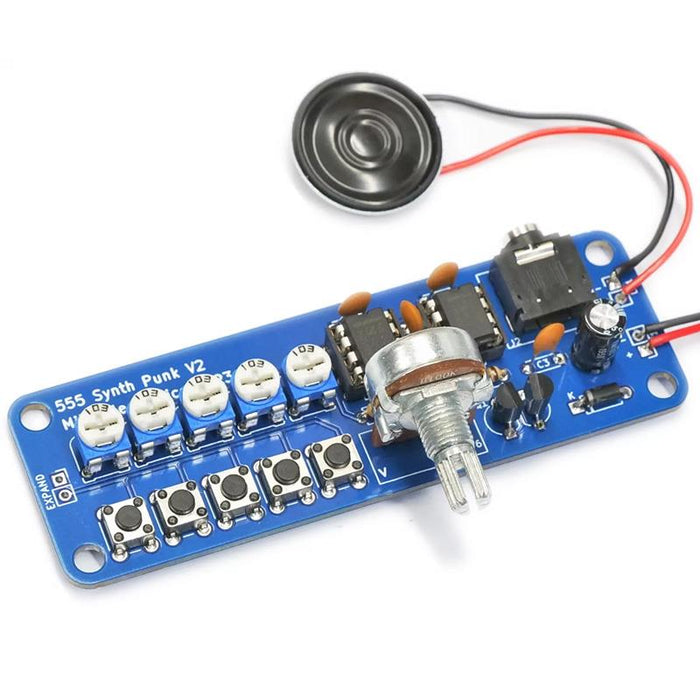

555 Synth Punk Electronics Kit

The 555 Synth Punk kit is an electronic synthesiser that takes inspiration from the famous Atari Punk Console circuit. Each button can be adjusted via a potentiometer to produce a different tone, an the larger potentiometer can be used to create stepped sounds. Powered from a single 9V PP3, this kit contains everything you need to explore your inner musician, and the 3.5mm audio jack lets you connect your 555 Synth Punk to external speakers for use in live performances (a simple resistor divider can be used here to also allow for recording to microphone ports).
The 555 Synth Punk also has an additional expansion port that lets you connect additional potentiometer/switch panels to expand the number of tone buttons. This port can also be used with other resistive elements to create sounds based on movement, temperature changes, and even light.

Battery: 9V PP3 (not included)

Operating voltage: 5-16V

PCB dimensions: 94 x 31mm

RoHS and REACH compliant

Instructions / documentation
What's in the kit?

2 x 8 DIP Socket

2 x NE555

4 x 100nF Capacitor

1 x 100uF Capacitor

2 x 1KΩ Resistor

5 x 10KΩ Potentiometer

1 x 100KΩ Potentiometer

1 x 1N5817 Diode

1 x 2N3904

1 x 2N3906

1 x Speaker

5 x Tactile Switch

1 x 3.5mm Phono Socket

1 x Black Wire

1 x Red Wire

1 x PP3 Connector
