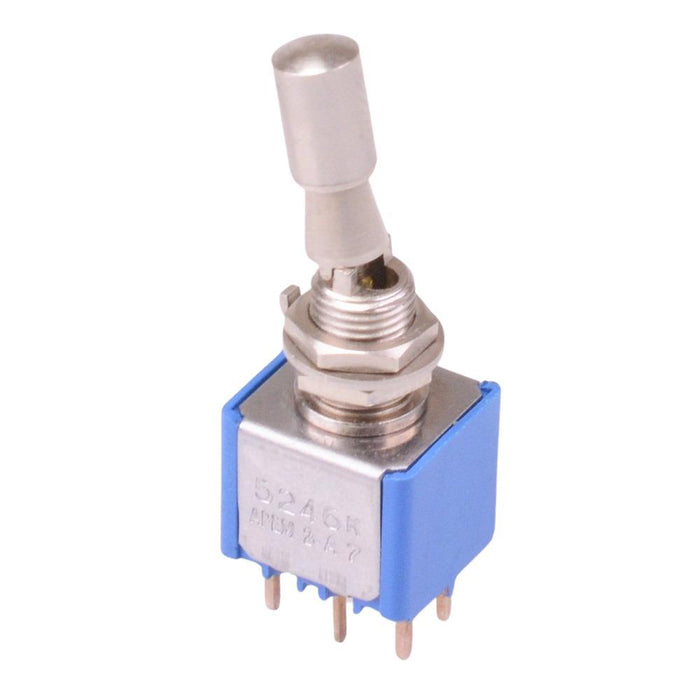

5246AKB2V APEM On-On Miniature Toggle Switch Locking Lever DPDT
by APEM
SKU 489830
MPN: 5246AKB2V
Availability:
49 in stock
Original price
£10.92
-
Original price
£10.92
Original price
£10.92
£10.92
-
£10.92
Current price
£10.92
The 5246AKB2V is a miniature toggle switch featuring On-On DPDT contacts, from the APEM 5000 series of switches. The switches feature PCB terminals and 6.35mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.
PCB solder terminals Contact rating: 4A 30VDC Panel cut-out: 6.5mm 2 position locking lever Silver contacts Epoxy sealed terminals Front panel sealing by one O-ring and washer 14.75mm length lever Terminal pitch: 4.75 x 4.7mm Body dimensions: 13.2 x 12.0 x 13.3mm (length x width x height) UL, CSA, CECC approved APEM 5000 series
Specification
| Actuation | Latching |
| Contact Configuration | DPDT |
| Contact Material | Silver |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 6.5mm |
| Panel Thickness | 2.5mm |
| Pitch | 4.7mm |
| Product Series | 5000 |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 30VDC |
