4-Way Right Angle PCB Header 2.54mm

SKU 483336

MPN: 483336

Availability:
806 in stock
Original price £0
Original price £0.14 - Original price £0.14
Original price
Current price £0.14(inc. VAT)
£0.14 - £0.14
Current price £0.14
 More payment options

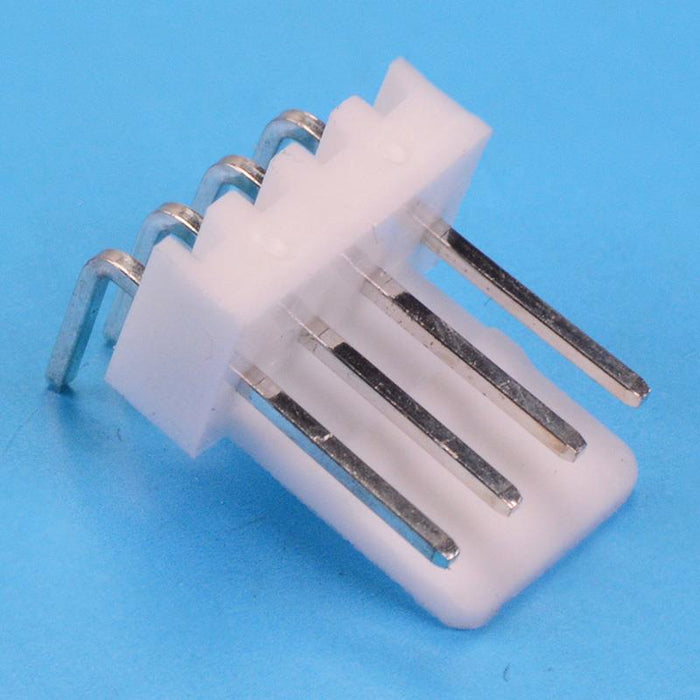

Single row 4 way horizontal pin header with 2.54mm pitch suitable for connecting wires to PCBs. The headers feature a friction lock to ensure secure retention when mated and are suitable for replacing Molex 5051 connectors.

  • 2.54mm pitch
  • Solder termination
  • Nylon-66 housing
  • Tin plated brass contacts
  • Rated Current: 4A
  • Rated Voltage: 250V
  • Specification
    Back Order Lead Time 45 Days
    Current Rating 4A
    Housing Material PA66
    MOQ 5
    Mounting Type PCB Mount
    Number of Pins 4
    Number of Ways 4
    Operating Temperature -25°C to +85°C
    Pitch 2.54mm
    Termination Method Solder
    Voltage Rating 250VAC
    Wire Range 22-28AWG
