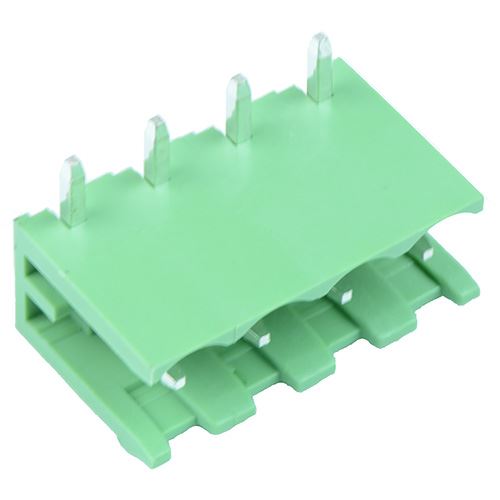

4-Way Plug-In PCB Horizontal Open Ends Header 5.08mm
SKU 550966
MPN: 550966
Availability:
899 in stock
Original price
£0
Original price
£0.20
-
Original price
£0.20
Original price
Current price
£0.20(inc. VAT)
£0.20
-
£0.20
Current price
£0.20
Open end side entry horizontal headers manufactured from PA66, suitable for PCB mounting.
4 poles 5.08mm pitch 15A current rating 300V voltage rating 2.5mm² maximum wire size Solder termination PCB mounting Housing material: PA66 UL 94V-0 Contact material: tin plated brass
Specification
| Back Order Lead Time | 30 Days |
| Colour | Green |
| Contact Material | Tin Plated Brass |
| Current Rating | 15A |
| Housing Material | PA66 |
| Mounting Type | PCB Mount |
| Number of Ways | 4 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 5.08mm |
| Termination Method | Solder |
| Voltage Rating | 300VAC |
