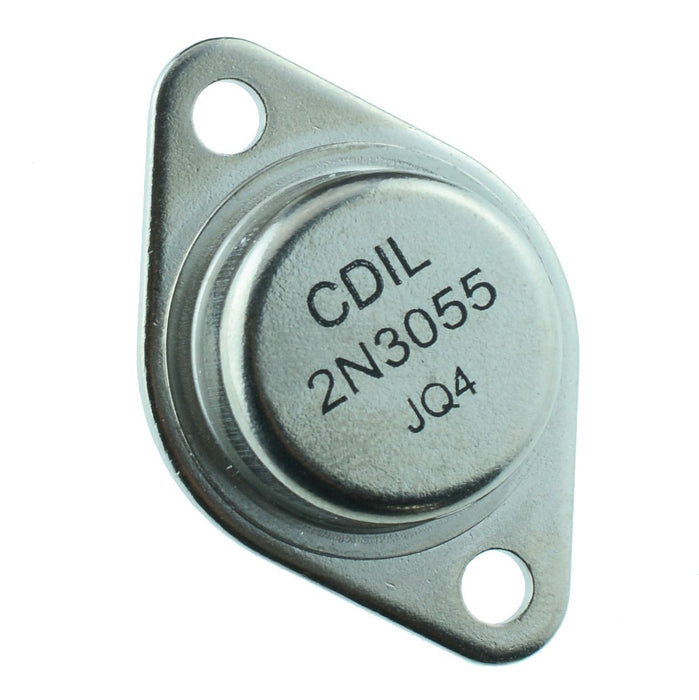

2N3055 Bipolar NPN Transistor 15A 60V
by CDIL
SKU 552330
MPN: T2N3055
Availability:
21 in stock
Original price
£0
Original price
£2.42
-
Original price
£2.42
Original price
Current price
£2.42(inc. VAT)
£2.42
-
£2.42
Current price
£2.42
2N3055 is a high power transistor with NPN polarity with 115W power dissipation, housed in a TO-3 package designed for general purpose switching and amplifier applications.
Collector emitter voltage: 60V Collector current: 15A Power dissipation: 115W Frequency: 2.5MHz
Specification
| Back Order Lead Time | 5 Days |
| Collector Base Voltage | 100V |
| Collector Current | 15A |
| Collector Emitter Voltage | 60V |
| DC Current Gain | 20-70 |
| Maximum Operating Temperature | 200°C |
| Package | TO3 |
| Power Dissipation | 115W |
| Transistion Frequency | 2.5MHz |
| Type | NPN |
