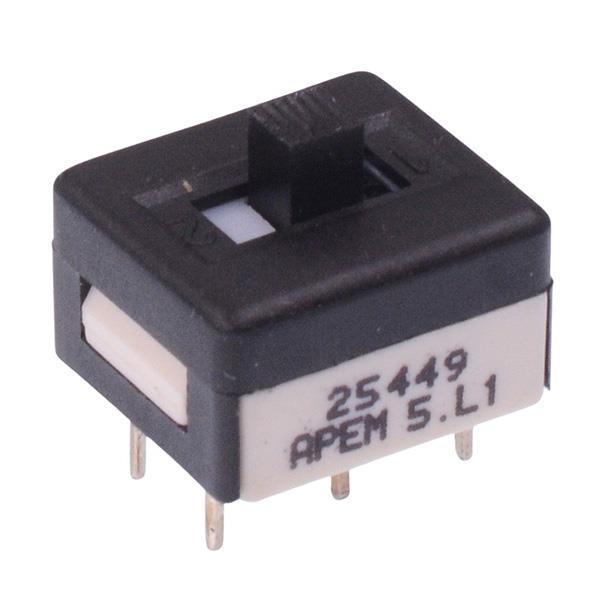

25449NAH APEM On-Off-On Professional PCB Slide Switch High Actuator DPDT
by APEM
SKU 487582
MPN: 25449NAH
Availability:
131 in stock
Original price
£0
Original price
£4.09
-
Original price
£4.09
Original price
Current price
£4.09(inc. VAT)
£4.09
-
£4.09
Current price
£4.09
Quantity Discounts
| Buy 25 - 99 | Get 13% off | £3.56(inc. VAT) each |
| Buy 100 - 249 | Get 21% off | £3.23(inc. VAT) each |
| Buy 250 - 499 | Get 28% off | £2.94(inc. VAT) each |
| Buy 500+ | Get 33% off | £2.74(inc. VAT) each |
The 25449NAH is a professional grade slide switch manufactured by APEM, featuring DPDT contacts and approved to UL1054. The switch is suitable for wave soldering and a wide range of PCB mounting applications.
DPDT contacts On-Off-On operation 5.08mm terminal spacing Silver contacts 2.8mm high actuator Rating: 1A 30VDC
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | DPDT |
| Contact Material | Silver |
| Contact Rating | 1A 30VDC |
| Current Rating | 1A |
| Electrical Life | 10,000 Cycles |
| Material | PBT |
| Mounting Style | PCB |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Operating Temperature | -40°C to +85°C |
| Pitch | 5.08mm |
| Product Series | 25000N |
| Switch Operation | On-Off-On |
| Terminal Type | PCB |
| Voltage Rating | 30VDC |
