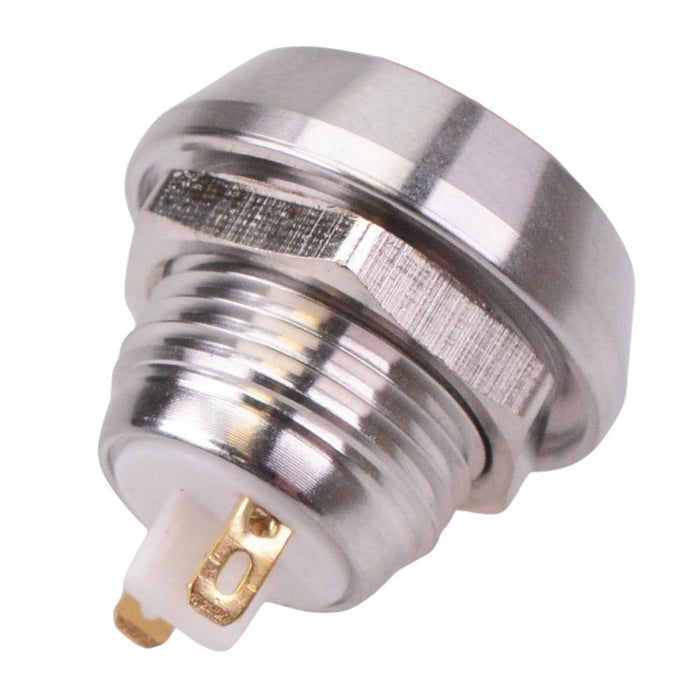

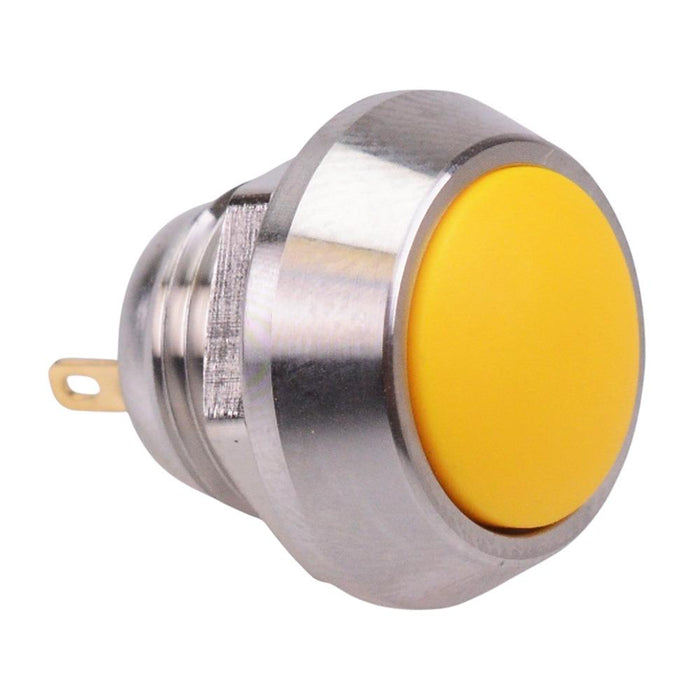

Yellow Momentary Vandal Resistant Push Button Switch 2A SPST
by Langir
SKU 485894
MPN: V12BP1S-Y
Availability:
42 in stock
Original price
£5.25
-
Original price
£5.25
Original price
£5.25
Inc VAT
£5.25
-
£5.25
Current price
£5.25
Inc VAT
Yellow vandal resistant push button switch featuring a round actuator and robust stainless steel alloy body. The switch features a IP65 sealed construction and NO SPST contacts suitable for a wide variety of applications.
Momentary action SPST contacts Stainless steel body material 12mm panel cut-out 2A 48VDC rating Solder terminals 1,000,000 mechanical cycles
Specification
Actuation | Momentary |
Back order lead time | 45 Days |
Colour | Yellow |
Contact configuration | SPST |
Contact rating | 2A 48VDC |
Current rating | 2A |
Electrical life | 200,000 Cycles |
Illuminated | No |
Illumination colour | Non Illuminated |
Material | Stainless Steel |
Mounting style | Panel |
Number of poles | 1 |
Number of positions | 2 |
Operating force | 5N |
Operating temperature | -20°C to +55°C |
Panel cut out | 12mm |
Panel thickness | 6mm Max |
Protection level | IP65 |
Switch operation | Off-(On) |
Terminal type | Solder |
Voltage rating | 48VDC |
