Yellow LED 14mm Metal Panel Indicator 12V
SKU 489289
MPN: FL1M-14SJ-1 Yellow 12V
Availability:
29 in stock
Original price
£3.71
-
Original price
£3.71
Original price
£3.71
£3.71
-
£3.71
Current price
£3.71
Yellow 12V panel indicator light featuring a black metal bezel, wide operating temperature range and long lifespan. The indicator requires a 14mm panel cut-out diameter and is suitable for a wide range of DC applications in most environments.

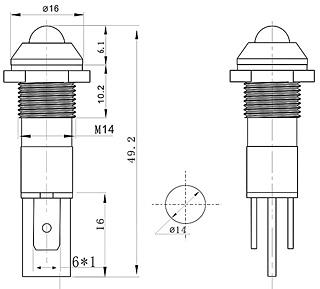

Voltage: 12V Colour: yellow Panel cut-out: 14mm Fitted with resistor Supplied with nut and gasket 6.3mm quick connect terminals Dimensions: 49.2 x 16mm (length x diameter)
Specification
| Back Order Lead Time | 30 Days |
| Colour | Yellow |
| Diameter | 16mm |
| Forward Current | 20mA |
| Lamp Type | LED |
| Length | 49.2mm |
| Life Expectancy | 100,000 Hours |
| Mouting Type | Panel Mount |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 14mm |
| Voltage Rating | 12VDC |
