Yellow Dot illuminated Circular Rocker Switch SPST 12V
SKU 481659
MPN: 481659
Availability:
164 in stock
Original price
£1.25
-
Original price
£1.25
Original price
£1.25
£1.25
-
£1.25
Current price
£1.25

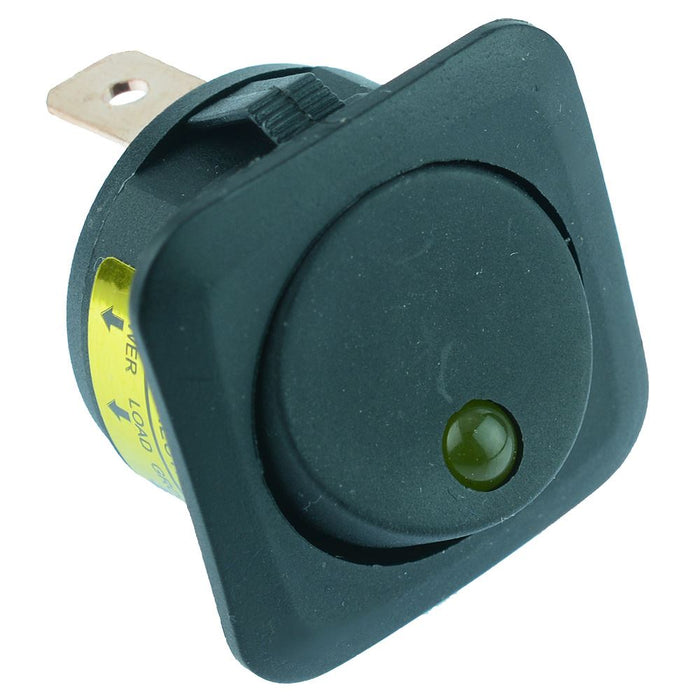

Circular rocker switch featuring a square flange and yellow light that illuminates in the ‘On’ position. The switch is suitable for panel mount automotive applications.
Yellow illumination On-Off operation Contact: SPST Rating: 12V 25A Panel cut-out: 25mm 6.3mm quick connect terminals
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 Days |
| Colour | Yellow |
| Contact Configuration | SPST |
| Contact Rating | 25A 12VDC |
| Current Rating | 25A |
| Electrical Life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Yellow |
| Illumination Voltage | 12VDC |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 25mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 12VDC |
