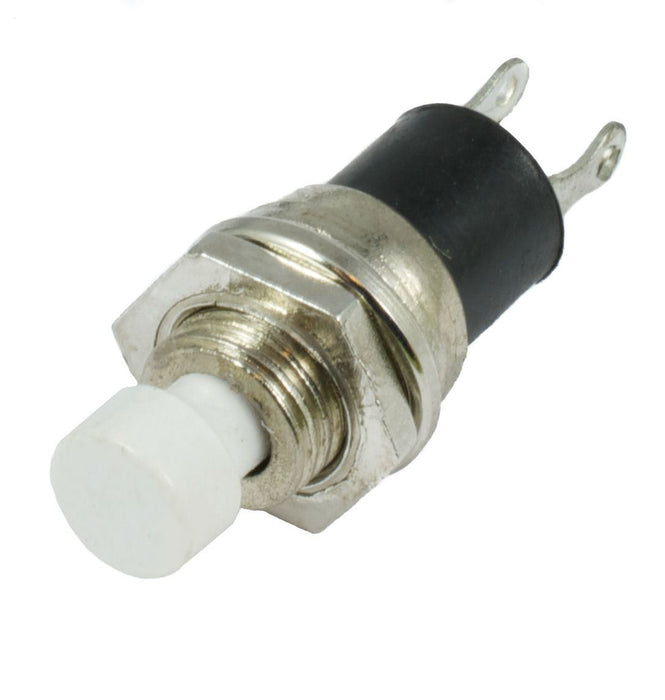

White Mini Off(On) Momentary Switch SPST
SKU 103015
MPN: 103015
Availability:
27 in stock
Original price
£0.35
-
Original price
£0.35
Original price
£0.35
£0.35
-
£0.35
Current price
£0.35
Miniature push button switch with a round actuator and solder lug terminals, suitable for low current applications.
Momentary switch action Off-(On) SPST contacts 7mm panel cut-out diameter Suitable for panel mounting Dimensions: 29 x 9.5mm (Height x Diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 45 Days |
| Colour | White |
| Contact Configuration | SPST |
| Contact Rating | 0.5A 250VAC |
| Current Rating | 0.5A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 7mm |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
