White LED On-On Latching 22mm Vandal Resistant Push Button Switch SPDT
SKU 481620
MPN: 481620
Availability:
41 in stock
Original price
£8.53
-
Original price
£8.53
Original price
£8.53
£8.53
-
£8.53
Current price
£8.53

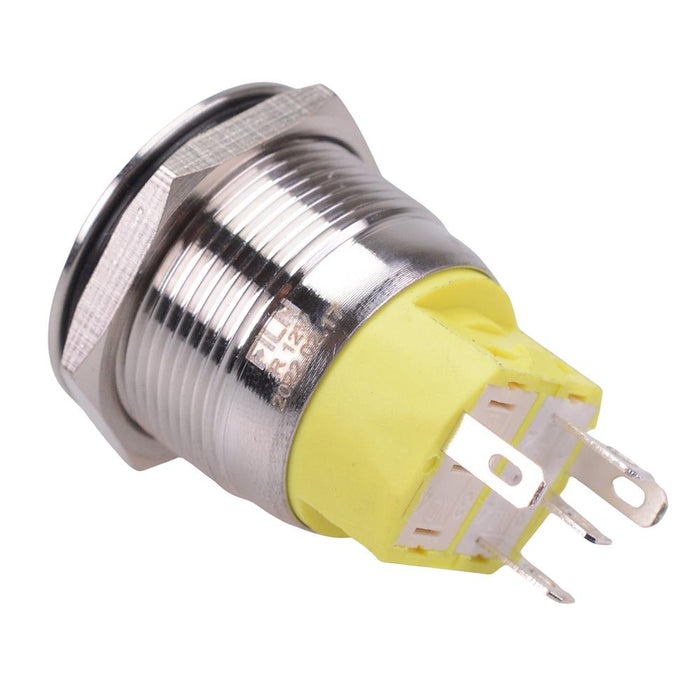

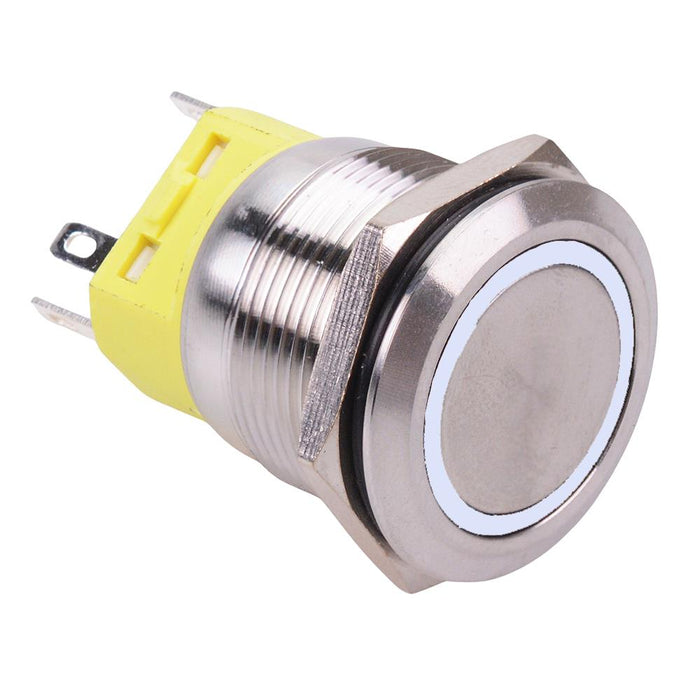

Latching vandal resistant 22mm push button switch featuring a white 12V LED and SPDT contacts. The switch is manufactured from stainless steel and features IP67 protection rating, making it suitable for a wide range of automotive and other 12V applications.
Latching action White LED 12V illumination voltage IP67 protection rating 22mm panel cut-out diameter NO/NC contacts 2.8mm terminals Rating: 5A 250VAC Dimensions: 35.4 x 25mm (length x diameter)
Specification
| Actuation | Latching |
| Back Order Lead Time | 30 Days |
| Colour | White |
| Contact Configuration | SPDT |
| Contact Rating | 5A 250VAC |
| Current Rating | 5A |
| Electrical Life | 50,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | White |
| Illumination Voltage | 12VDC |
| Material | Stainless Steel |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 22mm |
| Protection Level | IP67 |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
