White LED 3V On-(On) Momentary 16mm Vandal Push Button Switch SPDT
SKU 484994
MPN: 484994
Availability:
50 in stock
Original price
£5.46
-
Original price
£5.46
Original price
£5.46
£5.46
-
£5.46
Current price
£5.46

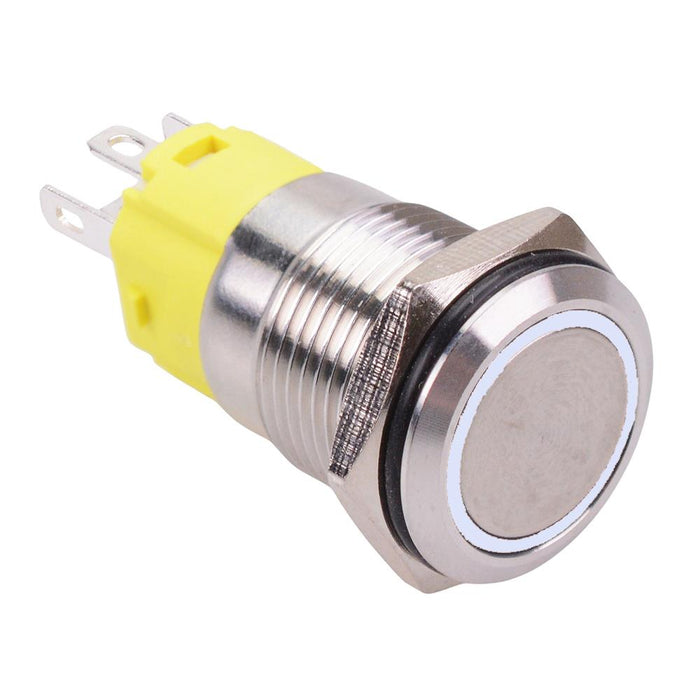

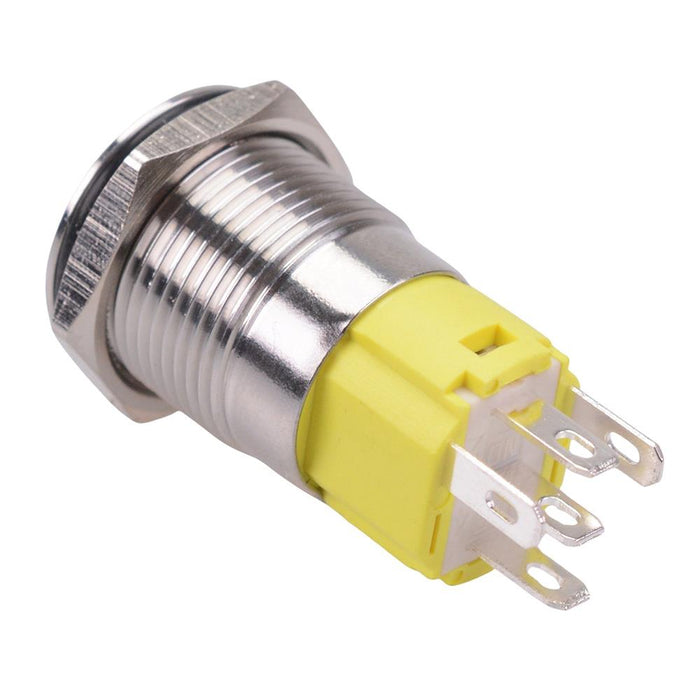

Momentary vandal resistant push button switch featuring a white 3V LED and SPDT contacts. The switch is manufactured from stainless steel and features IP65 protection rating, making it suitable for a wide range of low voltage applications.
Momentary action White LED 3V illumination voltage IP65 protection rating 16mm panel cut-out diameter NO/NC contacts 2.8mm terminals Rating: 3A 250VAC Dimensions: 36.7 x 18mm (length x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 30 Days |
| Colour | White |
| Contact Configuration | SPDT |
| Contact Rating | 3A 250VAC |
| Current Rating | 3A |
| Electrical Life | 50,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | White |
| Illumination Voltage | 3VDC |
| Material | Stainless Steel |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 16mm |
| Protection Level | IP65 |
| Switch Operation | On-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
