White 0.56" Seven Segment Display Anode LED
by Toyo LED
SKU 311175
MPN: E10561-G-WH-0-WF
Availability:
222 in stock
Original price
£0.75
-
Original price
£0.75
Original price
£0.75
£0.75
-
£0.75
Current price
£0.75

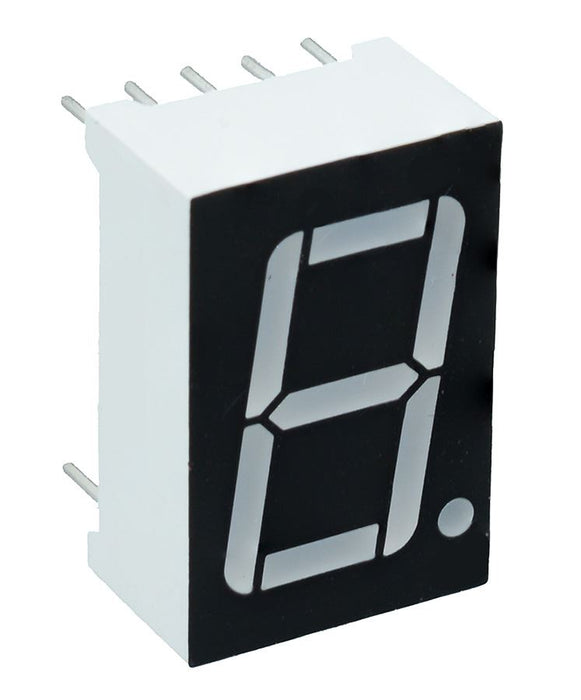

Single digit 7-segment display with excellent visibility and contrast. The LED provides a consistent brightness throughout the display and is suitable for PC Boards and Sockets mounting.
Common anode 7-segment size: 0.56” Black background Dimensions: 19.0 x 12.6 x 8mm
Specification
| Back Order Lead Time | 45 Days |
| Character Height | 0.56" |
| Character Width | 8.1mm |
| Colour | White |
| Colour Temperature | 8000-13,000K |
| Depth | 19mm |
| Forward Current | 30mA |
| Forward Voltage | 3.0V |
| Height | 8mm |
| Lens Colour | White Diffused |
| Luminous Intensity | 80mcd |
| Mounting Style | Through Hole |
| Number of Pins | 10 |
| Operating Temperature | -40°C to +85°C |
| Package | 12.6 x 19.0mm |
| Packaging | Bulk |
| Power Dissipation | 96mW |
| Width | 12.6mm |
