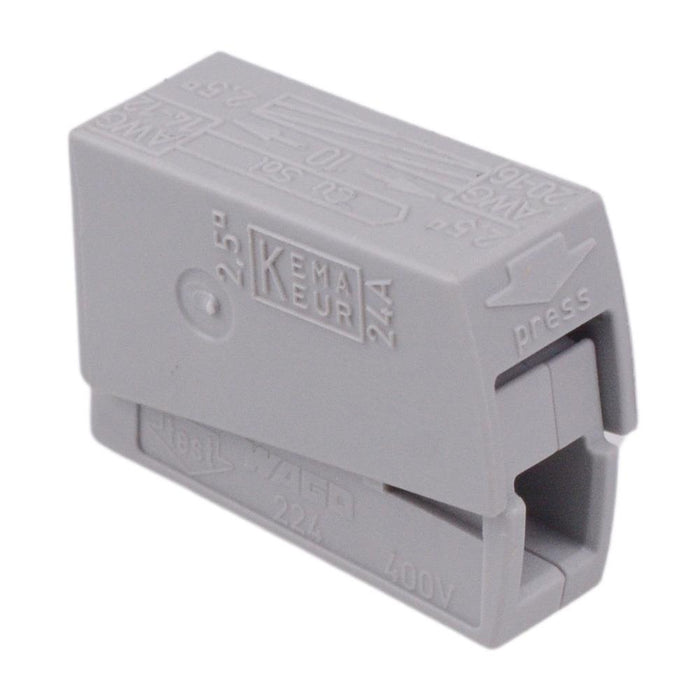

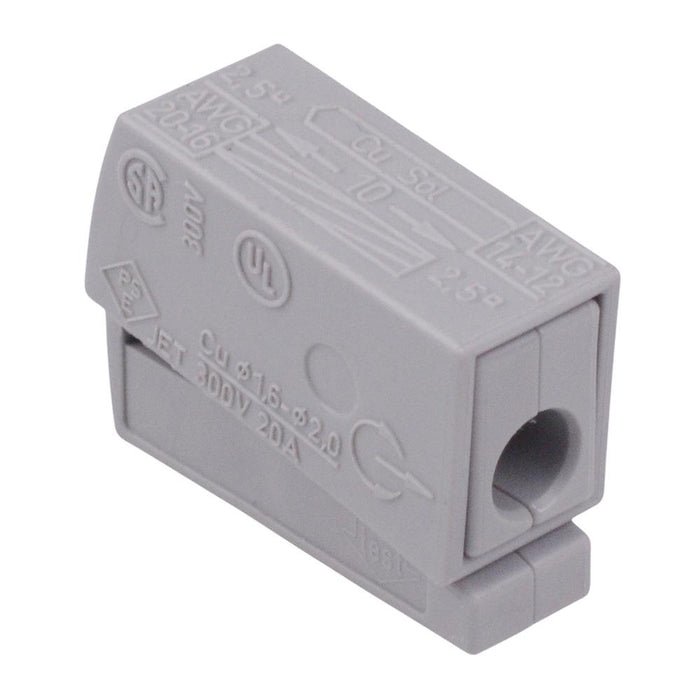

Wago 224-101 Lighting Connector 0.5-2.5mm²
by Wago
SKU 551008
MPN: 224-101
Availability:
711 in stock
Original price
£0.39
-
Original price
£0.39
Original price
£0.39
£0.39
-
£0.39
Current price
£0.39
The 224-101 is a standard lighting connector by WAGO, featuring a push button cage clamp suitable for use with solid and stranded wire conductors. The connectors utilise WAGO's push wire technology providing a quick push-in connection without any necessary tools. Due to its approval as independent equipment according to EN 60998, the lighting connectors can be used in nearly all electrical connections required for household and similar purposes in buildings.
Installation Side - Solid conductor size 1mm² to 2.5 mm² Lighting Side – Solid, Stranded or Flexible 0.5 mm² to 2.5 mm² Number of connection points: 2 Maximum Voltage: 400V Maximum current: 24A Strip length: 9-11mm Dimensions: 15.5 x 8.5 x 20.5mm (Height x Width x Depth)
Specification
| Back Order Lead Time | 5 Days |
| Colour | Grey |
| Contact Material | Copper Aluminium |
| Current Rating | 24A |
| Mounting Type | Cable Mount |
| Number of Ways | 1 |
| Termination Method | Spring Lever |
| Voltage Rating | 400V |
| Wire Range | 0.5 to 2.5 mm² |
