VTX-146-015-215 Toroidal Transformer 15VA 0-15V Vigortronix

SKU 487159

MPN: VTX-146-015-215

Availability:
9 in stock
Original price £15.33 - Original price £15.33
Original price
£15.33
£15.33 - £15.33
Current price £15.33

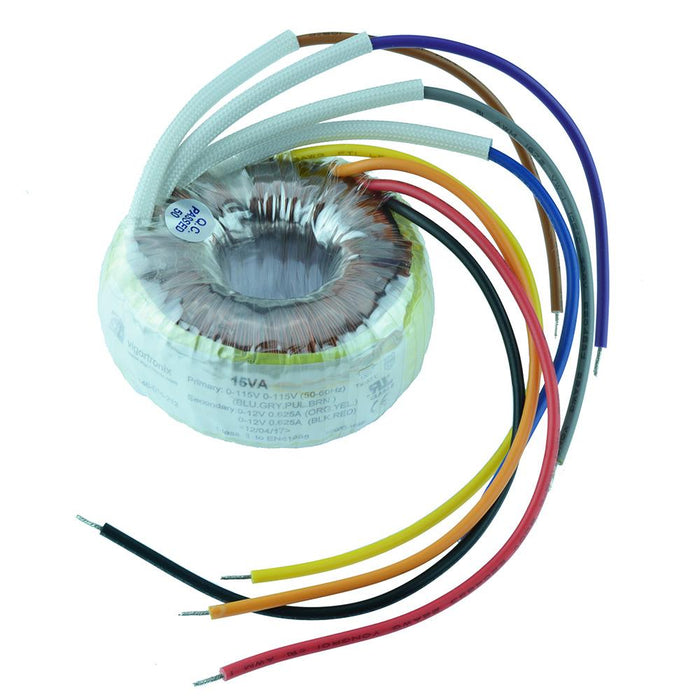

The VTX-146-015-215 is a high quality toroidal transformer featuring dual primary and secondary windings. The transformer features thermal fuses fitted to each primary winding, and a very low level radiated magnetic field. The transformers are widely used in industrial power, home appliances, instrumentation, communication and civil applications.

  • Dual primary winding: 115V+115V
  • Dual secondary winding: 0-15V 0-15V
  • Power: 15VA
  • Supplied with mounting kit
  • Dimensions: 33 x 65mm (Height x Diameter)
  • Compliant standards: EN61558, EN60950, UL, C-UL, UKCA and CE
  • Specification
    Back Order Lead Time 5 Days
    Diameter 65mm
    Height 33mm
    Output Current 0.5A
    Power 15VA
    Primary Voltage 2 x 115V
    Regulation 16%
    Secondary Voltage 2 x 15V
    Weight 330g
