VR00100 APEM 1 Key Stainless Steel Keypad Harsh Environments IP65
by APEM
SKU 490181
MPN: VR001000
Availability:
1429 in stock
Original price
£8.12
-
Original price
£8.12
Original price
£8.12
£8.12
-
£8.12
Current price
£8.12

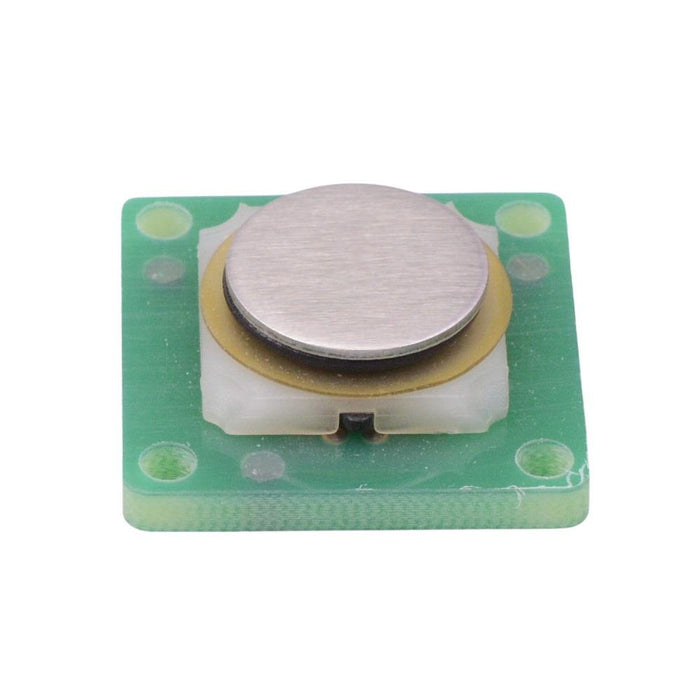

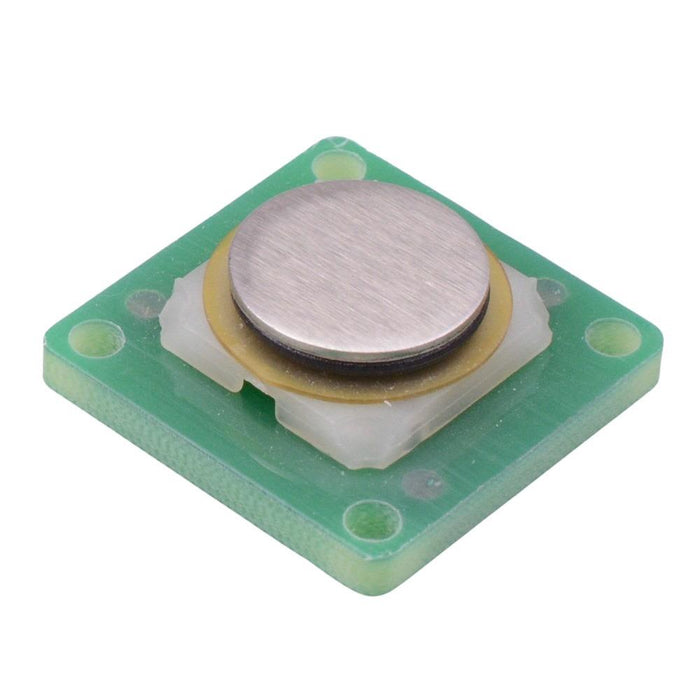

The VR00100 is a stainless steel keypad by APEM, manufactured from 316L stainless steel, suitable for harsh environments. They keypad is designed for rear mounting and is sealed to IP65. The keypad features a 17mm diameter key and can be combined with other keys to form a complete keypad.
- Rear mounting
- Sealed to IP65
- Material: 316L stainless steel
- Output: matrix (NO contacts)
- Max rating: 50mA 12VDC with resistive load
- Contact force: 4N
- Panel thickness: 2.5mm
- Panel cut-out: 17.5mm
Specification
| Actuation | Momentary |
| Contact Material | Gold Plated |
| Current Rating | 0.05A |
| Illuminated | No |
| Material | Stainless Steel |
| MOQ | 1 |
| Mounting Style | Panel |
| Operating Force | 4N |
| Operating Temperature | -20°C to +70°C |
| Panel Cut Out | 17.5mm |
| Panel Thickness | 2.5mm |
| Product Series | V |
| Protection Level | IP65 |
| Voltage Rating | 12VDC |
