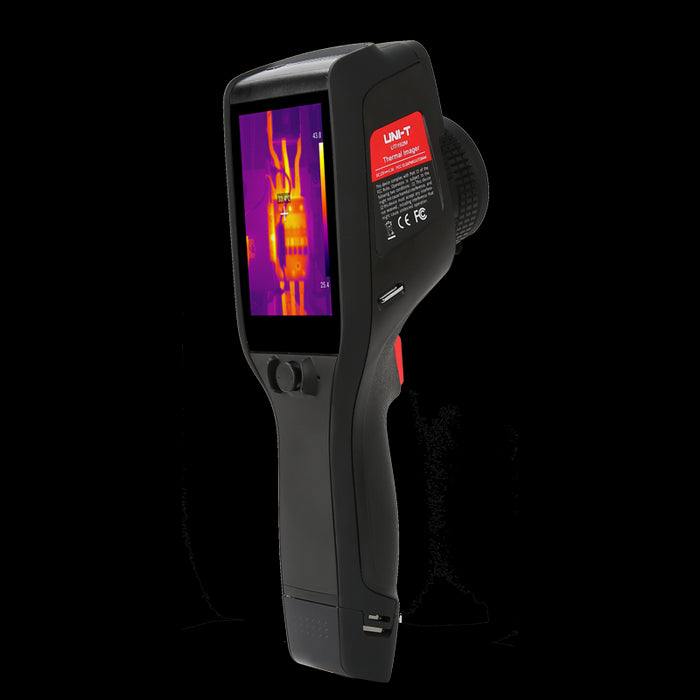

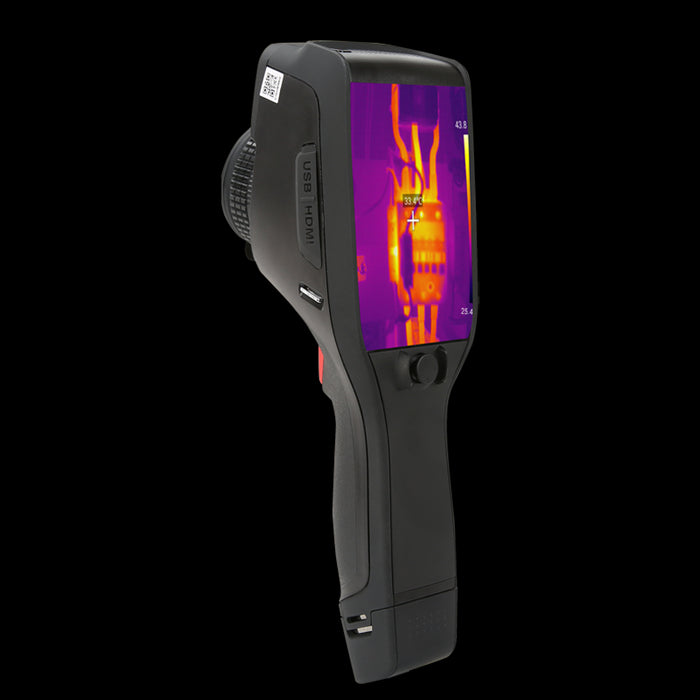

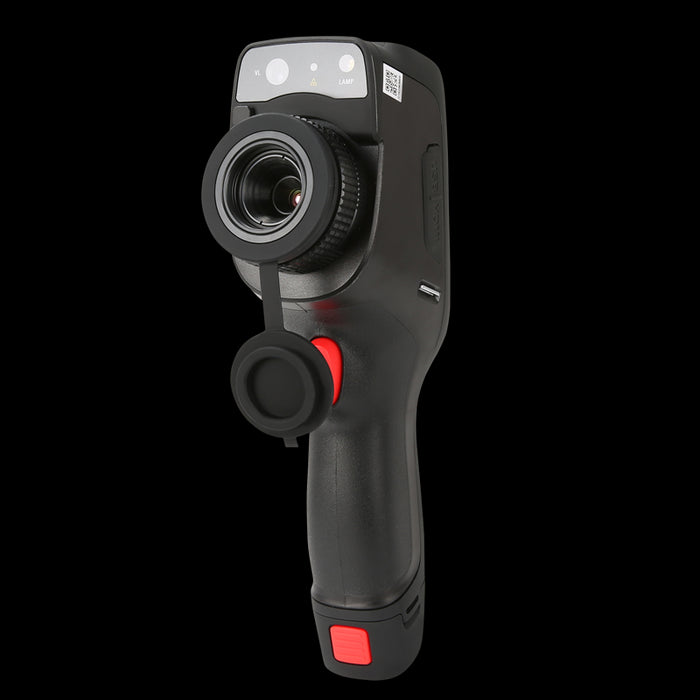

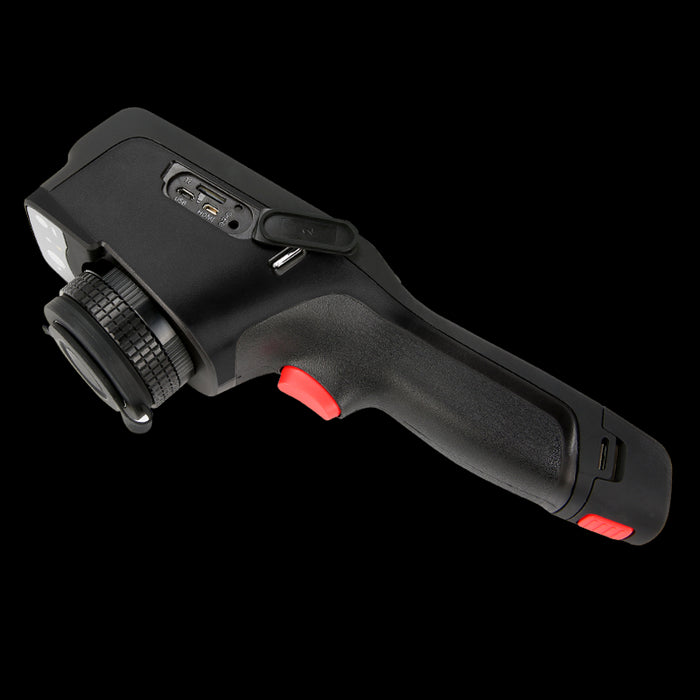

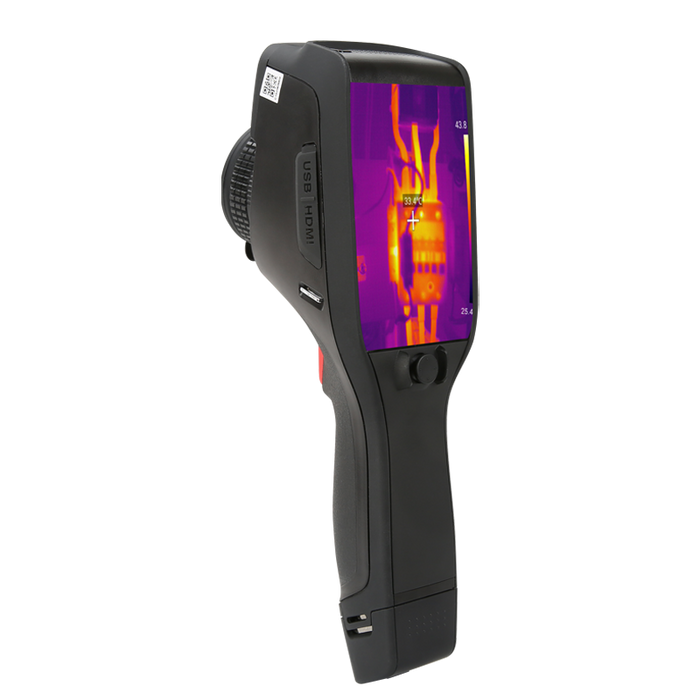

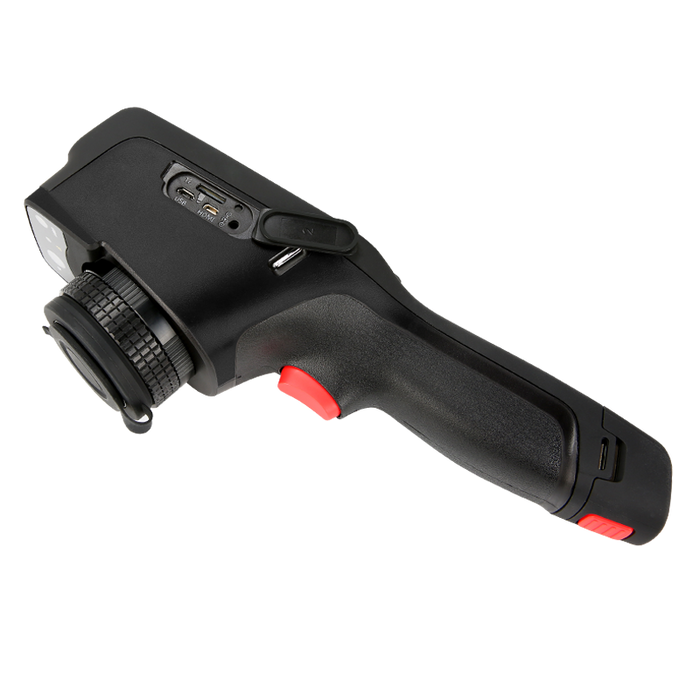

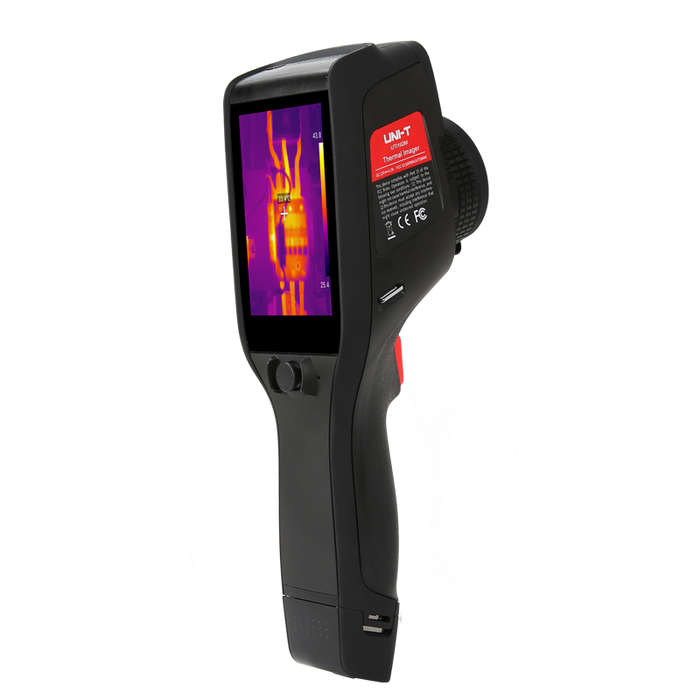

UTi384M Professional Thermal Imaging Camera Uni-T

by Uni-T
SKU 488634

MPN: UTi384M

Availability:
Out of stock
Sold out
Original price £5,861.47 - Original price £5,861.47
Original price
£5,861.47
£5,861.47 - £5,861.47
Current price £5,861.47
The UTi384M inherits the classic functions of high-end infrared thermal imagers, with simple appearance and ergonomic design. The touch-display screen menu navigation interface is convenient for users to operate easily. The UTi384M is equipped with a high intensity light, so that you can easily detect clear visible light and infrared contrast pictures, making it easier to find abnormalities. We also offer a wide range of high quality optional infrared lenses with higher temperature (1500℃) for different applications.

  • 4" touch display screen (800x480 Pixels)
  • IR resolution: 192x144
  • Temperature measurement range: -20℃ to 650℃, external lens up to 1500℃ / -4℉ to 1202℉, external lens up to 2732℉
  • Interchangeable lens (Optional Telephoto lens / High Temp lens)
  • Manual focus
  • Auto alarm for high/low temperature
  • Auto tracking for hot spot/cold spot
  • On display screen analyzer: 5 Points/2 Lines/5 Rectangles/5 Circles
  • Image capture
  • Video recording
  • Voice recording
  • Bluetooth connection
  • Digital camera resolution: 5MP
  • Digital zoom: 1.1~4x (continuous zoom)
  • Image modes: Thermal,Visual image,Fusion,PIP
  • Colour palettes: 8 (White hot, Fulgurite, Ironbow, Hot iron, Medical, Arctic, Rainbow 1, Rainbow 2)
  • Isotherm: 2(Above, Below)
  • LED flashlight
  • Laser pointer
  • Wi-Fi connection through Mobile APP
  • PC software analysis and real-time image projection
  • Replaceable battery pack
  • IP54
  • Specification
    Accuracy ±2℃ or ±2%
    Back Order Lead Time 10 Days
    Battery Detachable Li-ion Battery
    Battery Operation Time ≥ 4 hours
    Colour Palettes 8
    Connectivity HDMI, Micro USB
    Digital Camera Resolution 5MP
    Display 4" LCD Touch
    Field of View 28.4°×21.5°
    Focus Manual
    Frame Rate ≤25Hz
    Image Modes Thermal, Visual, Fusion, PIP
    IP Rating IP54
    IR Resolution 384x288
    On Screen Analyzer 5 Points, 2 Lines, 5 Rectangles, 5 Circles
    Spatial Resolution 1.29mrad
    Spectral Range 7.5~14µm
    Temperature Alarm Yes
    Temperature Range -20℃ to 650℃
    Thermal Sensitivity ≤45mK
    Wi-Fi Yes
