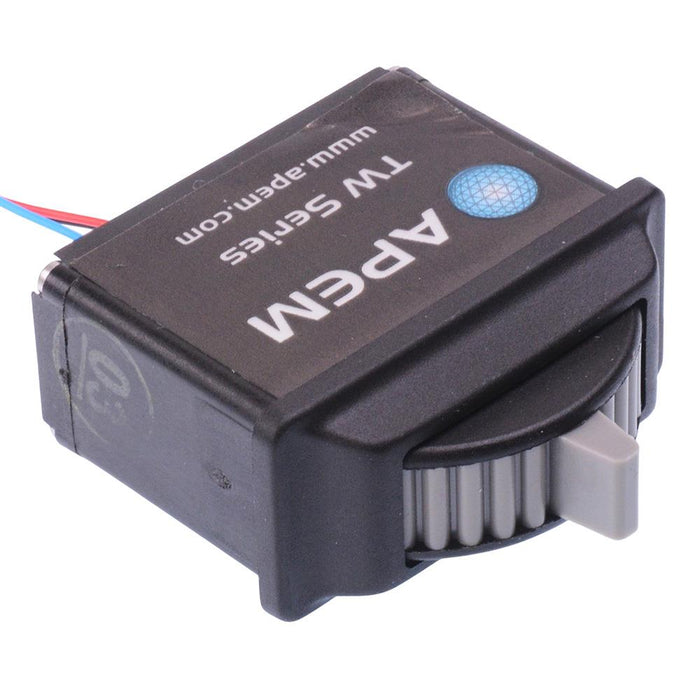

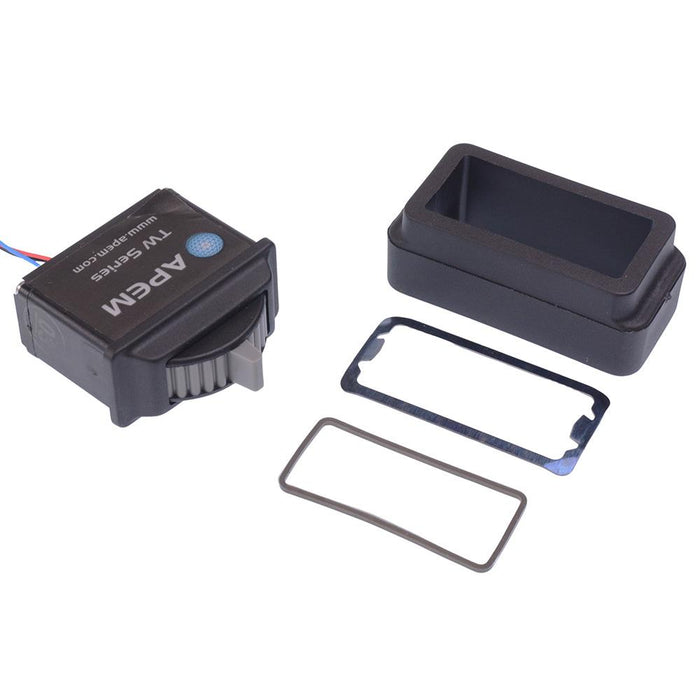

TW01GRY APEM Hall Effect Thumbwheel Self Centering Joystick
by APEM
SKU 487339
MPN: TW01GRY
Availability:
10 in stock
Original price
£50.98
-
Original price
£50.98
Original price
£50.98
Inc VAT
£50.98
-
£50.98
Current price
£50.98
Inc VAT
The TW01GRY is a minimum width, low profile joystick that provides smooth, precise fingertip control in one axis. Featuring non-contacting hall effect technology for long life performance, the joystick offers excellent proportional control, stable output, long life and is designed for panel mount applications and joystick integration.
Supply voltage: 5VDC Output voltage: 0-5VDC Spring return to center IP67 sealing Grey actuator Panel cut-out: 36.45 x 16.05mm 28AWG 25cm cables Default wire colour code: red +5V, black ground, blue output
Specification
| Back order lead time | 10 Days |
| Handle | Thumbwheel |
| Joystick travel | ±40° |
| Mechanical life | 5,000,000 Cycles |
| Number of axis | 1 |
| Operating temperature | -40°C to +85°C |
| Protection level | IP67 |
| Technology | Hall Effect |
| Terminal type | Tail Leads |
