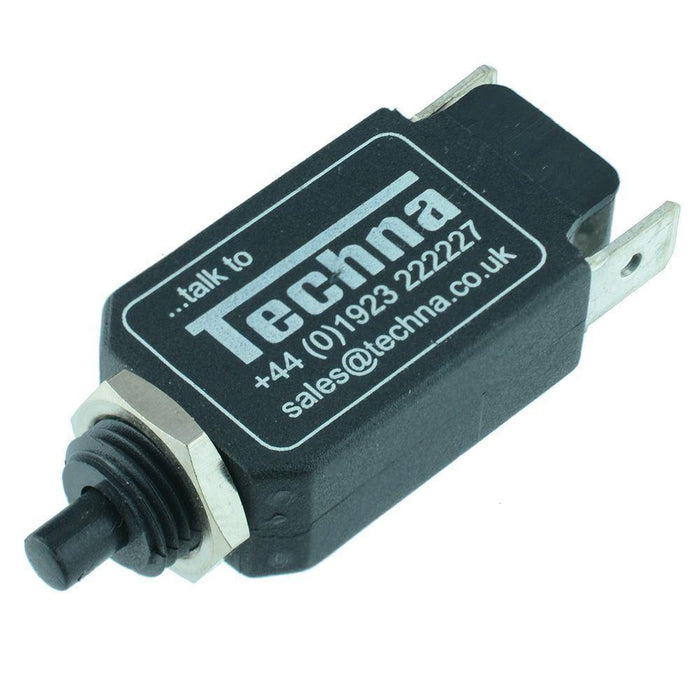

TR11CX630.5AS6 Techna 0.5A Miniature Thermal Circuit Breaker
by Techna
SKU 485177
MPN: TR11CX630.5AS6
Availability:
17 in stock
Original price
£3.54
-
Original price
£3.54
Original price
£3.54
£3.54
-
£3.54
Current price
£3.54
0.5A miniature panel mount circuit breaker from the TR11 series, manufactured by Techna. The breaker features a push to reset button, providing a trip free operation on overloads and short circuits. Suitable for a wide range of applications including single phase motors.
0.5A current rating
250Vac voltage rating
6.3mm quick connect terminals
Push button reset
10.2mm panel cut-out
Single pole
19 x 42mm dimensions (width x height)
Specification
| Back Order Lead Time | 5 Days |
| Current Rating | 0.5A |
| Interrupting Capacity | 1000A |
| Mounting Style | Panel |
| Operating Temperature | 60°C Maximum |
| Panel Cut Out | 10.2 x 9.4mm |
| Voltage Rating | 250V |
