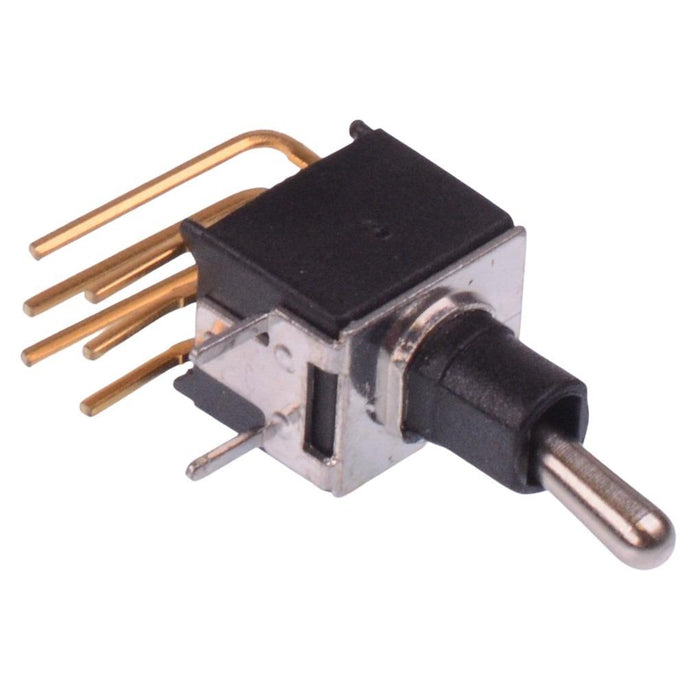

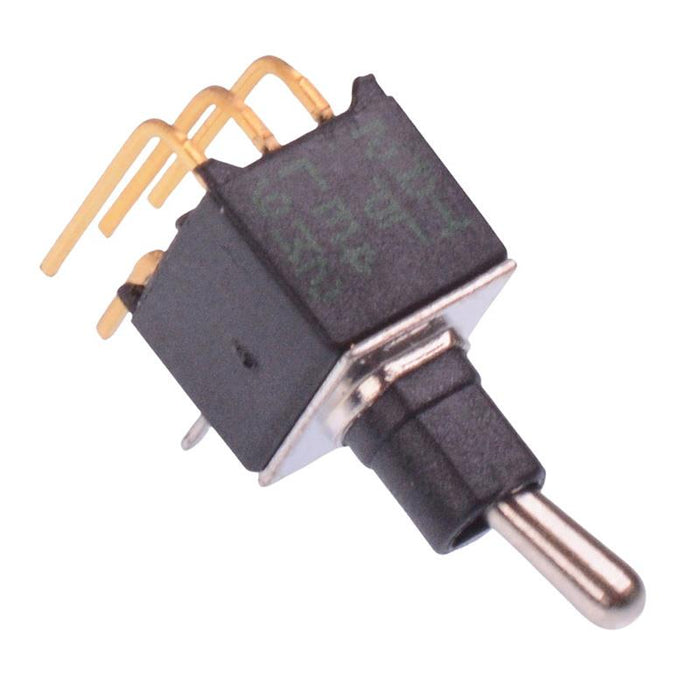

TL42W005000 APEM On-(On) Momentary Subminiature Washable PCB Toggle Switch DPDT
by APEM
SKU 487703
MPN: TL42W005000
Availability:
82 in stock
Original price
£3.11
-
Original price
£3.11
Original price
£3.11
£3.11
-
£3.11
Current price
£3.11
The TL42W005000 is a momentary sub-miniature toggle switch manufactured by APEM featuring DPDT contacts, designed for PCB mounting. The toggle switch features a single piece sealed case making them suitable for a wide range of applications including telecommunications.
On-(On) momentary operation DPDT contacts Right angle PCB terminals Horizontal PCB mounting Short lever Gold plated brass terminals 2.54mm pitch Rating: 0.4A 20VAC/DC
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Contact Configuration | DPDT |
| Contact Material | Gold Plated Brass |
| Contact Rating | 0.4A 20AC/DC |
| Current Rating | 0.4A |
| Electrical Life | 60,000 Cycles |
| Illuminated | No |
| Mounting Style | PCB |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to +85°C |
| Pitch | 2.54mm |
| Product Series | TL |
| Switch Operation | On-(On) |
| Terminal Type | Through Hole |
| Voltage Rating | 20VAC/DC |
