TL36W005100 APEM Black On-On Subminiature Washable PCB Toggle Switch SPDT
by APEM
SKU 487292
MPN: TL36W005100
Availability:
760 in stock
Original price
£2.68
-
Original price
£2.68
Original price
£2.68
£2.68
-
£2.68
Current price
£2.68

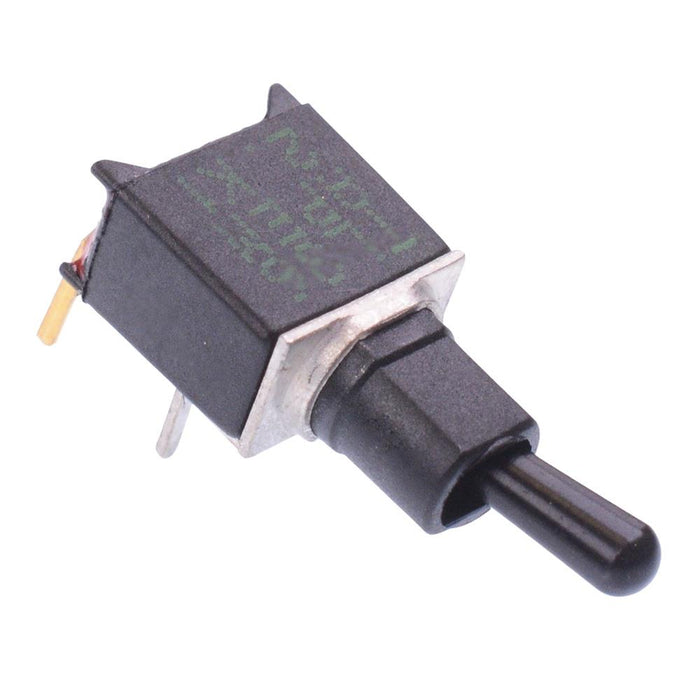

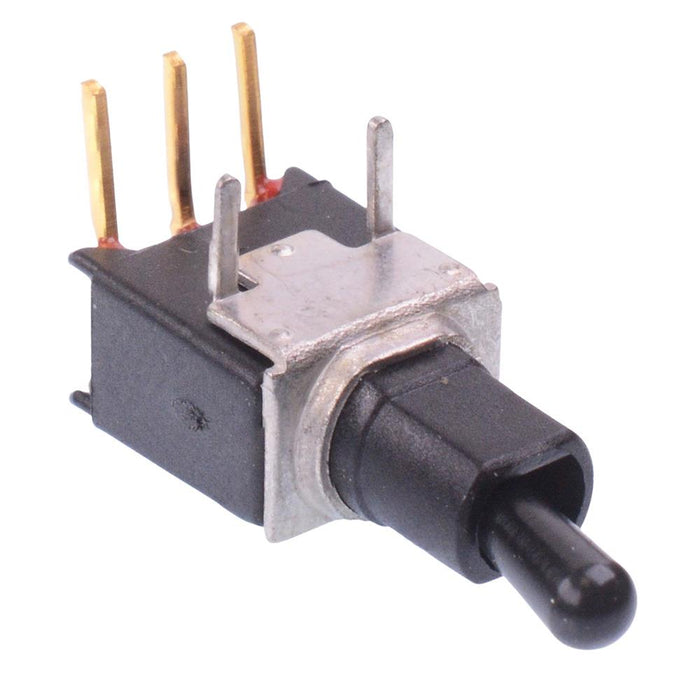

The TL36W005100 is a sub-miniature toggle switch manufactured by APEM featuring SPDT contacts, designed for PCB mounting. The toggle switch features a single piece sealed case making them suitable for a wide range of applications including telecommunications.
On-On operation SPDT contacts Right angle PCB terminals Horizontal PCB mounting Black short lever Gold plated brass terminals 2.54mm pitch Rating: 0.4A 20VAC/DC
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPDT |
| Contact Material | Gold Plated Brass |
| Contact Rating | 0.4A 20AC/DC |
| Current Rating | 0.4A |
| Electrical Life | 60,000 Cycles |
| Illuminated | No |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to +85°C |
| Pitch | 2.54mm |
| Product Series | TL |
| Switch Operation | On-On |
| Terminal Type | Through Hole |
| Voltage Rating | 20VAC/DC |
