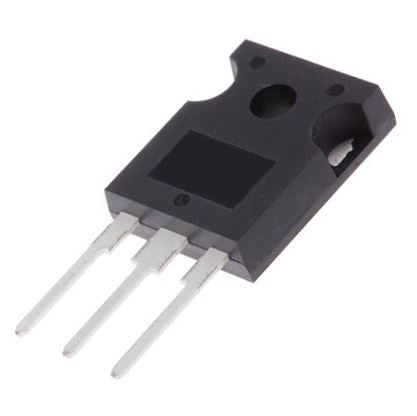

TIP3055 ST NPN Power Transistor 60V TO-247
by ST
SKU 551577
MPN: TIP3055
Availability:
179 in stock
Original price
£1.24
-
Original price
£1.24
Original price
£1.24
£1.24
-
£1.24
Current price
£1.24
The TIP3055 transistor is a general purpose NPN power transistor manufactured in epitaxial base planar technology and supplied in TO247 packaging. This transistor is particularly suitable for audio, power linear and switching applications. For further technical specifications please refer to the attached datasheet.
- Low collector-emitter saturation voltage
- Epitaxial base planar technology
- Suitable for audio, power linear and switching applications
- 90W 15A 100V TO247
Specification
| Back Order Lead Time | 5 Days |
| Collector Base Voltage | 7V |
| Collector Current | 15A |
| Collector Emitter Saturation Voltage | 3V |
| Collector Emitter Voltage | 60V |
| DC Current Gain | 20 |
| Maximum Operating Temperature | 150°C |
| Mounting Type | Through Hole |
| Package | TO247 |
| Power Dissipation | 90W |
| Type | NPN |
