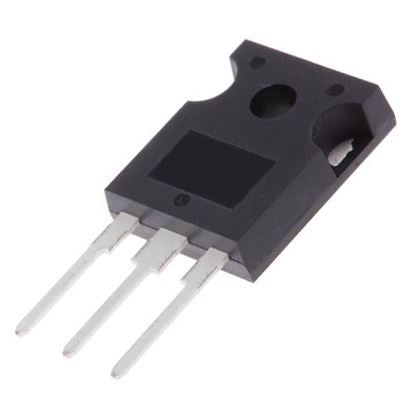

TIP147 ST PNP DARL Transistor 100V TO-247
by ST
SKU 551576
MPN: TIP147
Availability:
127 in stock
Original price
£2.06
-
Original price
£2.06
Original price
£2.06
£2.06
-
£2.06
Current price
£2.06
The TIP147 transistor is manufactured in planar technology with base island layout and monolithic darlington configuration. This resutls in a transistor with exceptional high gain performance coupled with very low saturation voltage. For further technical specifications please refer to the attached datasheet.
- Monolithic Darlington configuration
- Integrated antiparallel collector-emitter diode
- Suitable for linear and switching industrial equipment
- 125W 10A 100V TO247 DARL
Specification
| Back Order Lead Time | 5 Days |
| Collector Base Voltage | 100V |
| Collector Current | 10A |
| Collector Emitter Saturation Voltage | 3V |
| Collector Emitter Voltage | 100V |
| DC Current Gain | 100 |
| Maximum Operating Temperature | 150°C |
| Mounting Type | Through Hole |
| Package | TO247 |
| Power Dissipation | 125W |
| Type | PNP |
